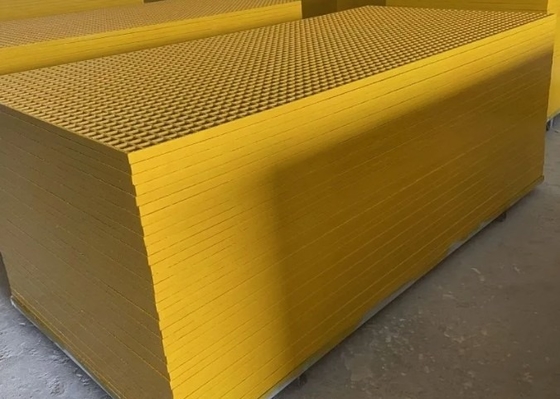

Non-Slip Aesthetic Eco Friendly Industrial Grade Material FRP Products Fiberglass Grating

Großes Bild : Non-Slip Aesthetic Eco Friendly Industrial Grade Material FRP Products Fiberglass Grating

Produktdetails:

Herkunftsort:	China
Markenname:	QIJIE
Zertifizierung:	sgs
Modellnummer:	frp Gitter

Zahlung und Versand AGB:

Min Bestellmenge:	10 PCS
Verpackung Informationen:	mit einer Breite von nicht mehr als 20 mm
Lieferzeit:	15 bis 18 Tage
Zahlungsbedingungen:	Akkreditiv, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	100-200PCS

Kontakt

Ausführliche Produkt-Beschreibung

Installationsmethode:

Bolzen-Festlegung

Material:

aus Glasfaser

Art der Oberfläche:

Grindfläche

Dicke:

25 mm

Hervorheben:

Non-Slip Frp Fiberglass Grating

Industrial Grade FRP Grating

Eco Friendly Fiberglass Grating

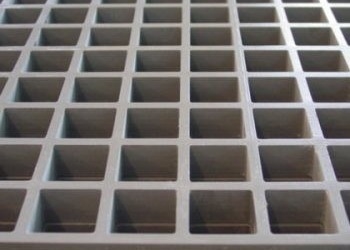

Square Mesh 20*20*40 Fiberglass/FRP Molded Grating with High Strength Corrosion Resistant

Fiberglass Grating is a lightweight and sound alternative to Steel or Aluminum Gratings

FRP (Fibre Reinforced plastic) grating is manufactured in an open, heated mould system. Continuous E-glass rovings are placed in the mould in alternating layers and completely wet out with resin. This continuous process produces an integral, one-piece construction which provides excellent corrosion resistance as well as bi-directional strength.

Fibreglass Grating Is a durable industrial flooring solution. Commonly used in factories, plants and a range of other industries across South Africa. A high grade, chemical resistant flooring option made from vinyl ester or Polyester Isophthalic. This is ideal for situations and environments where spills, slips and mishaps must be minimised for work to flow smoothly.

With a stunning design that allows for a large amount of stress, wear and tear, as well as ultimate drainage.

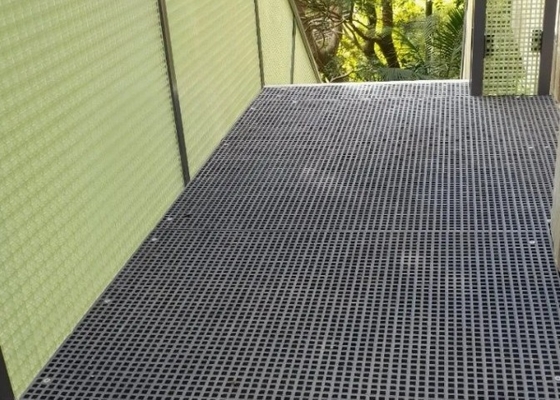

The one-piece construction method allows for excellent resistance to weathering over time. With a cross patched patterns design, this product also boasts bi-directional strength! Thus creating the perfect product to be used on walkways and for raised flooring with the need for drainage.

The following resin systems are available:

Polyester Isophthalic
Vinyl Ester

With an anti-slip (gritted top) or smooth surface. Colours available on request.

MOULDS SPECIFICATION TABLE

PRODUCTION DETAILS

Industries

Chemical plant and metal finishing
Construction engineering, traffic and transportation
Petrochemical engineering, ocean survey, water engineering
Food and beverage plants
Textile printing and dyeing and electronic industry

Functions

Anti-slip floor, stair tread, a footbridge
The operation platform, trench cover
Security and safety fence, handrail
Off-shore oil rig, shipyard, shipping deck, ceiling
Ramp ladder, scaffold, railway
Decorative grid, man-made fountain pool grid
Non-conductive and non-magnetic

Advantages

Anti-fire
Anti-corrosion and anti-ageing
Anti-slippery
Light but high loaded strength
Long service life and maintenance-free
Non-conduction or magnetic
Easy installation and rich colours
Various sizes and colours available

RESINS OPTIONS GUIDE
When selecting grating, be certain to review the RESIN SELECTION GUIDE for your application

Resin Type	Resin option	Properties	Fire retardant (ASTME84)	MAX ºC
Type P	phenolic	lower smoke and superior fire resistance	class 1,5 or less	150 ºC
Type V	vinyl ester	superior corrosion resistance and fire retaddant	class 1,25 or less	95 ºC
Type I	isophthalic polyester	industrial grade corrosion resistance and fire retardant	class 1,25 or less	85ºC
Type O	ortho	moderate corrosion resistance and fire retardant	class 1,25 or less	85 ºC
Type F	lsophthalic polyester	Moderate Corrosion Resistanceand Fire Retardant	class 1,25 or less	85 ºC
Type E	EроXy	Excellent corrosion resistanceand fire retardant	class 1,25 or less	180 ºC

Producting proceed

Non-Slip Aesthetic Eco Friendly Industrial Grade Material FRP Products Fiberglass Grating 4

Non-Slip Aesthetic Eco Friendly Industrial Grade Material FRP Products Fiberglass Grating 5

Non-Slip Aesthetic Eco Friendly Industrial Grade Material FRP Products Fiberglass Grating 6

Non-Slip Aesthetic Eco Friendly Industrial Grade Material FRP Products Fiberglass Grating 7

Clip Fastening & Installation Methods

To ensure ease of installation, please review all relevant technical documentation.

Take care when fasteningand seek assistance if required. For further info regarding installation please contact .

The section below illustrates standard installation methods that can be applied to moulded grating.

Clip and fastening selections should be made according to the substrate material in use.

Non-Slip Aesthetic Eco Friendly Industrial Grade Material FRP Products Fiberglass Grating 8

Non-Slip Aesthetic Eco Friendly Industrial Grade Material FRP Products Fiberglass Grating 9

FRP Grating Applications

Sinogrates has high-performance gratings that are suitable for use in specific areas with higher technical requirements.In particular,Sinogrates offers a line of gratings with high chemical resistance, which are suitable for use in chemically aggressive environments such as chemical, galvanic, extraction, manufacturing industry (tanneries, paper mills, etc.) and waste treatment. This line is characterized by the use of pure isophthalic or vinylester resin, which is free of additives, and the use of a higher amount of resin compared to the standard grating in order to ensure total coverage of fibreglass.

Non-Slip Aesthetic Eco Friendly Industrial Grade Material FRP Products Fiberglass Grating 10
