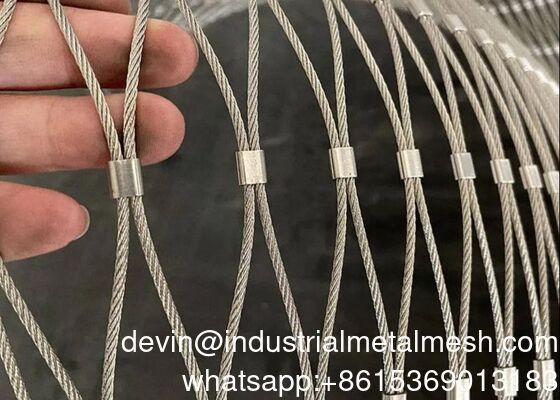

304 316 Diamond Stainless Steel Cable Woven Ferrule Wire Rope Mesh for Zoo Animals

Großes Bild : 304 316 Diamond Stainless Steel Cable Woven Ferrule Wire Rope Mesh for Zoo Animals

Produktdetails:

Herkunftsort:	Hebei, China
Markenname:	QIJIE
Zertifizierung:	CE,SGS,ISO
Modellnummer:	SW-004

Zahlung und Versand AGB:

Min Bestellmenge:	10 Quadratmeter
Verpackung Informationen:	Holzkiste
Lieferzeit:	10-15 Arbeitstage
Zahlungsbedingungen:	30% TT im Voraus, Guthaben vor der Verladung
Versorgungsmaterial-Fähigkeit:	3000 m2/Monat

Kontakt

Ausführliche Produkt-Beschreibung

Material:	Edelstahldraht	Typ:	Seil-Masche, Zwingen-Art oder geknotete Art
Anwendung:	Mesh schützen	Webenstil:	Einfaches Gewebe
Technik:	Gewebt	Modellnummer:	Stahldrahtseil-Masche
Bearbeitungsservice:	Weben	Rohstoff:	Edelstahl 304 316, galvanisierter Draht
Zubehör:	Alle konnten zur Verfügung gestellt werden	E-Mail:	devin@industrialmetalmesh.com
WhatsApp:	+8615369013183
Hervorheben:	stainless steel cable woven mesh , wire rope mesh for zoo animals , 304 316 diamond ferrule rope mesh

304 316 Diamond Stainless Steel Cable Woven Ferrule Wire Rope Mesh for Zoo Animals

Stainless steel rope mesh has unique characteristics that allows design flexibility in architecture. It incorporates the tensile strength of the indestructible stainless steel and aesthetically diamond openings which is graceful and beautiful.
There are two types of flexible wire rope meshes in construction: ferrule type and knotted.
Stainless steel rope mesh is light, robust and transparent, and it can stand up to heavy loads, and now it has been widely used as balustrade infill system, zoo enclosures, tensile facade, safety netting and green wall systems.

Specification

Anti-theft 304 stainless steel wire rope mesh	SS 316 SS 304 Diamond Flexible Stainless Steel Wire Cable Net for zoo
Common material	SS304, SS316
Cable strand	77, 719
Special specification	According to clients' requirements
Feature	Flexibility, wear resistance, corrosion resistance.

304 316 Diamond Stainless Steel Cable Woven Ferrule Wire Rope Mesh for Zoo Animals 0

Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: primary color or black oxide finish.
Cable diameter: 1.0-5.0 mm.
Mesh opening sizes: 25-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Ordering: specific to order, according to the project.
Construction of wire cable: 7 × 7, 7 × 19.
Connection: ferrule or knotted.

304 316 Diamond Stainless Steel Cable Woven Ferrule Wire Rope Mesh for Zoo Animals 1

Knotted type cable mesh is a type of inter-woven mesh fabricated from high tensile stainless steel cables in construction of 7 × 7 or 7 × 19. Compared with similar products, our range of knotted cable meshes have incomparable advantages in terms of practicability, security, durability, aesthetic property and life span as shown below:
1.Excellent security
2.Superb durability
3.Aesthetic property
4.Wide lifespan over 30 years
5.High versatility

304 316 Diamond Stainless Steel Cable Woven Ferrule Wire Rope Mesh for Zoo Animals 2

Ferrule type cable mesh has similar physical properties to knotted cable mesh, but different combination style - seamless ferrules that combine cables together to form a resilient metal fabric with rhombus holes. This flexible mesh gracefully adapts to your most challenging 3-D tensile projects and various applications owing to following advantages:
1.High transparency
2.High strength
3.Flexible & impact resistance
4.Non-flammable
5.Anti-climb
6.Easy installation & maintenance-free

Code	Rope Construction	Rope Diameter		Opening Size		Breaking Force
Code	Rope Construction	Inch	mm	Inch	mm	KN
BR-01	7 × 19	1/8	3.2	4.7" × 4.7"	120 × 120	7.38
BR-02	7 × 19	1/8	3.2	4" × 4"	102 × 102	7.38
BR-03	7 × 19	1/8	3.2	3.6" × 3.6"	90 × 90	7.38
BR-04	7 × 19	1/8	3.2	3" × 3"	76 × 76	7.38
BR-05	7 × 19	1/8	3.2	2" × 2"	51 × 51	7.38
BR-06	7 × 7	3/32	2.4	4" × 4"	102 × 102	4.18
BR-07	7 × 7	3/32	2.4	3.6" × 3.6"	90 × 90	4.18
BR-08	7 × 7	3/32	2.4	3" × 3"	76 × 76	4.18
BR-09	7 × 7	3/32	2.4	2.4" × 2.4"	60 × 60	4.18
BR-10	7 × 7	3/32	2.4	2" × 2"	51 × 51	4.18
BR-11	7 × 7	5/64	2	3" × 3"	76 × 76	3.17
BR-12	7 × 7	5/64	2	2.4" × 2.4"	60 × 60	3.17
BR-13	7 × 7	5/64	2	2" × 2"	51 × 51	3.17
BR-14	7 × 7	5/64	2	1.5" × 1.5"	38 × 38	3.17
BR-15	7 × 7	1/16	1.6	3" × 3"	76 × 76	2.17
BR-16	7 × 7	1/16	1.6	2" × 2"	51 × 51	2.17
BR-17	7 × 7	1/16	1.6	1.5" × 1.5"	38 × 38	2.17
BR-18	7 × 7	1/16	1.6	1.2" × 1.2"	30 × 30	2.17
BR-19	7 × 7	1/16	1.6	1" × 1"	25 × 25	2.17
BR-20	7 × 7	3/64	1.2	2" × 2"	51 × 51	1.22
BR-21	7 × 7	3/64	1.2	1.5" × 1.5"	38 × 38	1.22
BR-22	7 × 7	3/64	1.2	1.2" × 1.2"	30 × 30	1.22
BR-23	7 × 7	3/64	1.2	1" × 1"	25 × 25	1.22
BR-24	7 × 7	3/64	1.2	0.8" × 0.8"	20 × 20	1.22

Specifications can be customized according to customer needs.

Ferruled mesh:

Code	Rope Construction	Rope Diameter		Aperture	Breaking Force
Code	Rope Construction	Inch	mm	mm	kN
BR-01	7 × 19	1/8	3.2	120 × 208	7.38
BR-02	7 × 19	1/8	3.2	100 × 173	7.38
BR-03	7 × 19	1/8	3.2	90 × 156	7.38
BR-04	7 × 7	3/32	2.4	100 × 173	4.18
BR-05	7 × 7	3/32	2.4	90 × 156	4.18
BR-06	7 × 7	3/32	2.4	80 × 139	4.18
BR-07	7 × 7	3/32	2.4	70 × 121	4.18
BR-08	7 × 7	5/64	2	100 × 173	3.17
BR-09	7 × 7	5/64	2	90 × 156	3.17
BR-10	7 × 7	5/64	2	80 × 139	3.17
BR-11	7 × 7	5/64	2	70 × 121	3.17
BR-12	7 × 7	1/16	1.6	80 × 139	2.17
BR-13	7 × 7	1/16	1.6	70 × 121	2.17
BR-14	7 × 7	1/16	1.6	60 × 104	2.17
BR-15	7 × 7	1/16	1.6	51 × 87	2.17
BR-16	7 × 7	3/64	1.2	80 × 139	1.22
BR-17	7 × 7	3/64	1.2	60 × 104	1.22
BR-18	7 × 7	3/64	1.2	50 × 87	1.22
BR-19	7 × 7	3/64	1.2	40 × 69	1.22

Specifications can be customized according to customer needs.

Feature:

1.High strength, strong toughness, free-angles curving and fold,it is discreet and portable.
2. Lightweight, high-strength, never rust, softness.
3. Anti-corrosive, resist the rust, can be repeated use.
4. Impact resistance, breaking force, the overall structure of the rugged life of more than 30 years
5. The mesh size and diameter can be modify

304 316 Diamond Stainless Steel Cable Woven Ferrule Wire Rope Mesh for Zoo Animals 3

304 316 Diamond Stainless Steel Cable Woven Ferrule Wire Rope Mesh for Zoo Animals 4

304 316 Diamond Stainless Steel Cable Woven Ferrule Wire Rope Mesh for Zoo Animals 5
