Impact Resistant High Load-Bearing Capacity Stainless Steel Wire Rope Mesh for Protection

Großes Bild : Impact Resistant High Load-Bearing Capacity Stainless Steel Wire Rope Mesh for Protection

Produktdetails:

Herkunftsort:	Hebei, China
Markenname:	QIJIE
Zertifizierung:	CE,SGS,ISO
Modellnummer:	SW-004

Zahlung und Versand AGB:

Min Bestellmenge:	10 Quadratmeter
Verpackung Informationen:	Holzkiste
Lieferzeit:	10-15 Werktage
Zahlungsbedingungen:	30% TT im Voraus, Guthaben vor der Verladung
Versorgungsmaterial-Fähigkeit:	3000 m2/Monat

Kontakt

Ausführliche Produkt-Beschreibung

Material:	Edelstahldraht	Typ:	Seil-Masche, Zwingen-Art oder geknotete Art
Anwendung:	Schützendes Netz	Webenstil:	Einfaches Gewebe
Technik:	gewebt	Modellnummer:	Stahldrahtseil-Masche
Bearbeitungsservice:	Weben	Rohstoff:	Edelstahl 304 316, galvanisierter Draht
Zubehör:	Alle konnten zur Verfügung gestellt werden	E-Mail:	devin@industrialmetalmesh.com
WhatsApp:	+8615369013183
Hervorheben:	impact resistant stainless steel wire mesh , high load-bearing wire rope mesh , stainless steel protection wire mesh

Impact Resistant High Load-Bearing Capacity Stainless Steel Wire Rope Mesh for Protection

Stainless steel cable netting.

Stainless steel rope mesh also called cable mesh net, is made from high tensile stainless steel 304, 316, 304L and 316L. Stainless steel rope mesh can be divided into two kinds according to the combination method: stainless steel knotted rope mesh and stainless steel ferrule rope mesh. One is combined by the ropes winded together. And the other is combined by the ferrules which are made up from the same grade stainless steel.
Our rope mesh may in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps. It is weather resistant, extremely robust and requires virtually no maintenance. The stainless steel net is suitable for interior and exterior applications. Installed on railings or in stairways, it provides stability and clear guidance. On facades, it can serve as a climbing support for plants or it can set delicate accents as a dividing element in large spaces. The greatest advantage, however, is its delicate structure. Especially in zoo animal enclosures or protective nets, the visual impairment due to the unavoidable barrier is minimal.

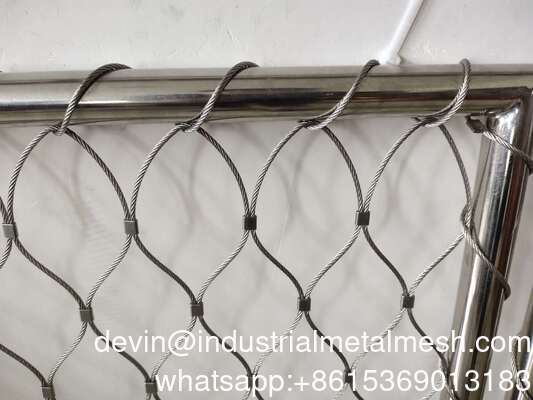

Impact Resistant High Load-Bearing Capacity Stainless Steel Wire Rope Mesh for Protection 0

Specification

Material: Stainless Steel 304, 304L, 316, 316L.
Wire diameter: 1.0 mm - 5.0 mm.
Construction of wire cable: 7 × 7, 7 × 19.
Weaving Types: Handwoven, Open type buckle, Closed type buckle.
Mesh opening sizes: 25-200 mm.

Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.

Surface treatment: primary color or black oxide finish.

Connection: Ferrule or knotted.

Ferrule material: stainless steel, tinned copper, nickel plated copper.

Standard areas
Rope diameter	Mesh Width
1,0 mm	25 mm - 200 mm
1,5 mm	18 mm - 200 mm
2,0 mm	30 mm - 400 mm
3,0 mm	40 mm - 400 mm

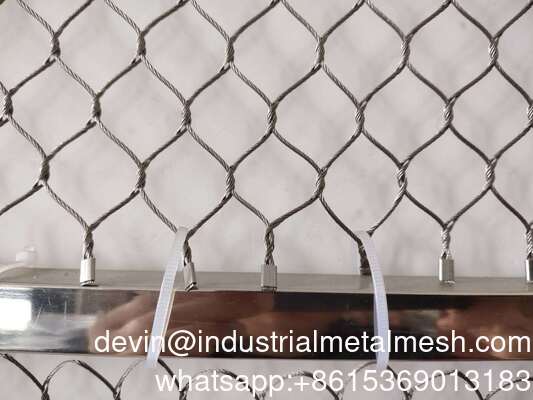

Impact Resistant High Load-Bearing Capacity Stainless Steel Wire Rope Mesh for Protection 1

1.Flexible stainless steel cable mesh (Inter-woven type)

Our Flexible stainless steel cable mesh products are supplied in two main series: Inter-woven and Ferrule Type. Inter-woven mesh are hand-woven which was also called hand-woven mesh is made from fine s.s.wire rope . The rope construction is 7 x 7 or 7 x 19 and made from AISI 304 or AISI 316 material group.This mesh has strong tensile strength , high flexibility,high transparence and wide span.The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc. Its more and more appreciated by garden designers and architect all over the world.

The specification of stainless steel knotted rope mesh

Code	Rope Construction	Rope Diameter		Opening Size		Breaking Force
Code	Rope Construction	Inch	mm	Inch	mm	KN
BR-01	7 × 19	1/8	3.2	4.7" × 4.7"	120 × 120	7.38
BR-02	7 × 19	1/8	3.2	4" × 4"	102 × 102	7.38
BR-03	7 × 19	1/8	3.2	3.6" × 3.6"	90 × 90	7.38
BR-04	7 × 19	1/8	3.2	3" × 3"	76 × 76	7.38
BR-05	7 × 19	1/8	3.2	2" × 2"	51 × 51	7.38
BR-06	7 × 7	3/32	2.4	4" × 4"	102 × 102	4.18
BR-07	7 × 7	3/32	2.4	3.6" × 3.6"	90 × 90	4.18
BR-08	7 × 7	3/32	2.4	3" × 3"	76 × 76	4.18
BR-09	7 × 7	3/32	2.4	2.4" × 2.4"	60 × 60	4.18
BR-10	7 × 7	3/32	2.4	2" × 2"	51 × 51	4.18
BR-11	7 × 7	5/64	2	3" × 3"	76 × 76	3.17
BR-12	7 × 7	5/64	2	2.4" × 2.4"	60 × 60	3.17
BR-13	7 × 7	5/64	2	2" × 2"	51 × 51	3.17
BR-14	7 × 7	5/64	2	1.5" × 1.5"	38 × 38	3.17
BR-15	7 × 7	1/16	1.6	3" × 3"	76 × 76	2.17
BR-16	7 × 7	1/16	1.6	2" × 2"	51 × 51	2.17
BR-17	7 × 7	1/16	1.6	1.5" × 1.5"	38 × 38	2.17
BR-18	7 × 7	1/16	1.6	1.2" × 1.2"	30 × 30	2.17

2.Flexible stainless steel cable mesh (Ferrule type)

Our flexible stainless steel cable mesh are supplied in two main series : Inter-woven and Ferrule. Our mesh is made from s.s.wire rope in various material type like SUS304,SUS304L,SUS316,SUS316L etc and two main strand structures:7*7 and 7*19.cable dia.1mm-4mm and mesh size:20mm-160mm. The ferrule type series are sub-divided into aluminum alloy mesh ,stainless steel ,tinned copper and nickled copper mesh by the material of the ferrule. The ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.

The specification of stainless steel ferrule rope mesh

Code	Rope Construction	Rope Diameter		Aperture	Breaking Force
Code	Rope Construction	Inch	mm	mm	kN
BR-01	7 × 19	1/8	3.2	120 × 208	7.38
BR-02	7 × 19	1/8	3.2	100 × 173	7.38
BR-03	7 × 19	1/8	3.2	90 × 156	7.38
BR-04	7 × 7	3/32	2.4	100 × 173	4.18
BR-05	7 × 7	3/32	2.4	90 × 156	4.18
BR-06	7 × 7	3/32	2.4	80 × 139	4.18
BR-07	7 × 7	3/32	2.4	70 × 121	4.18
BR-08	7 × 7	5/64	2	100 × 173	3.17
BR-09	7 × 7	5/64	2	90 × 156	3.17
BR-10	7 × 7	5/64	2	80 × 139	3.17
BR-11	7 × 7	5/64	2	70 × 121	3.17
BR-12	7 × 7	1/16	1.6	80 × 139	2.17
BR-13	7 × 7	1/16	1.6	70 × 121	2.17
BR-14	7 × 7	1/16	1.6	60 × 104	2.17
BR-15	7 × 7	1/16	1.6	51 × 87	2.17
BR-16	7 × 7	3/64	1.2	80 × 139	1.22
BR-17	7 × 7	3/64	1.2	60 × 104	1.22
BR-18	7 × 7	3/64	1.2	50 × 87	1.22

Impact Resistant High Load-Bearing Capacity Stainless Steel Wire Rope Mesh for Protection 3
