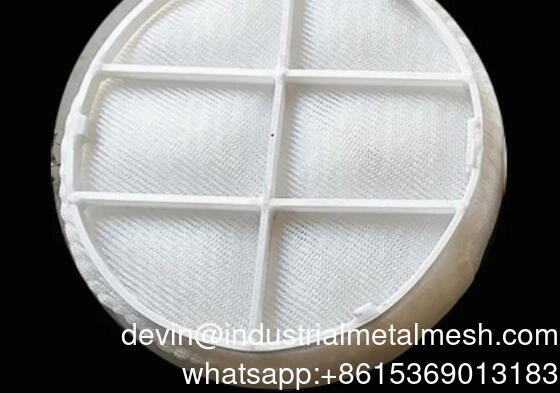

Customize PP PTFE Wire Mesh Mist Eliminator Plastic Demistor Pads

Großes Bild : Customize PP PTFE Wire Mesh Mist Eliminator Plastic Demistor Pads

Produktdetails:

Herkunftsort:	Hebei, China
Markenname:	qijie
Zertifizierung:	Iso
Modellnummer:	Demisterauflage

Zahlung und Versand AGB:

Min Bestellmenge:	100 Stück
Verpackung Informationen:	Paletten oder hölzerner Fall
Lieferzeit:	10-15 Tage
Zahlungsbedingungen:	TT/LC
Versorgungsmaterial-Fähigkeit:	100 Stück pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Material:	SS304, SS316, SS304L, SS316L, Monel400 und Plastik-suchas pp., PVDF, PTFEetc.	Anwendbar:	air&oil Filter
Verwendung:	Flüssigkeitsfilter	Typ:	Filterelemente, SP, HP, DP, Stunde
Lochform:	Runden	Filterbewertung:	99 %
Dicke:	100-150 mm	E-Mail:	devin@industrialmetalmesh.com
WhatsApp:	+8615369013183
Hervorheben:	PP PTFE wire mesh mist eliminator , plastic demister pads with warranty , customizable PTFE wire mesh demister

Customize PP PTFE Wire Mesh Mist Eliminator Plastic Demistor Pads

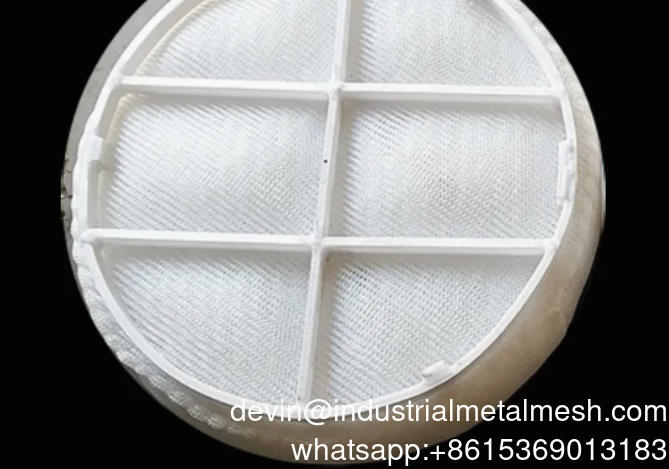

Polypropylene (PP) Mist Eliminator pad is a common type among plastic demister pad. It is made of PP knitted wire mesh and gratings. The PP demister pad can not only used for filtering large liquid foam out, which is suspended in the gas stream, it can also filter out the smaller and tiny liquid foam. The gratings are added onto the wire mesh pad for supporting the demister pad and easy installing. The PP demister pad can ensure the high mass transfer efficiency and reduce the loss of valuable materials. The PP demister pad is widely used for gas and liquid separation in various applications.

Item	Density (kg/m3)	Free Volume (%)	Surface area (m2/m3)	Domestic Model	Other Companies Model
Item	Density (kg/m3)	Free Volume (%)	Surface area (m2/m3)	Domestic Model	Metex	York	Becoil	Knitmesh	Vico-tex	Uop	Koch	Acs
BS-1	80	99.0	158	H	Hi-Thtuput	931	954	4536	160	B	511	7CA
BS-2	120	98.5	210	L		422
BS-3	144	98.2	280	N	Nu-Standard	431		9030	280	A	911	4CA
BS-4	128	98.4	460	SN		326			415		706
BS-5	193	97.5	375	SL	Xtra-Dense	421	890	9033	380	C	1211	4BA
BS-6	300	96.2	575	SM
BS-7	390	95.0	750	SH
BS-8	220	97.2	905	T
BS-9	432	94.5	1780	R	Multi-Strand	333			800
BS-10	220	97.2	428	W	Wound
BS-11	160	96.7	5000	GS		371

Please note:
Density 80 is suitable for both metal materials and plastic materials,other models in only suitable for metal materials.

· Material: stainless steel, Monel, titanium, PP, PVC, PE, PTFE and so on.
· Wire diameter: 0.2 mm, 0.22 mm, 0.23 mm, 0.25 mm, 0.28 mm, 0.3 mm, 0.35 mm.
· Mesh size: 2 mm × 3 mm, 4 mm × 6 mm to 12 mm × 6 mm.
· Height or thickness: 100 mm to 150 mm.
· Pad diameter: 300 mm - 6000 mm.

Standard Stype
Wire diameter dw(mm)		Width Tolerance (mm)	Density (kg/m3)	Surface Area (m2/m3)		Void Fraction
Flat Wire	Round Wire	±10	150	Flat Wire	Round Wire	0.981
0.1*0.4	0.23			475	320
High Efficiency
Wire Diameter dw(mm)		Width Tolerance (mm)	Density (kg/m3)	Surface Area (m2/m3)		Void Fraction
Flat Wire	Round Wire	±10	182	Flat Wire	Round Wire	0.977
0.1*0.3	0.19			626	484
High Penetration
Wire Diameter dw(mm)		Width Tolerance (mm)	Density (kg/m3)	Surface Area(m2/m3)		Void Fraction
Flat Wire	Round Wire	±10	98	Flat Wire	Round Wire	0.9875
0.1*0.4	0.23			313	217

1. Low pressure drop. The pressure drop of gas passing through the demister is only 100-400 Pa, which is beneficial for improving the equipment's performance
Work efficiency.

2. Simple structure, low pressure drop, large contact surface area, and acid and alkali resistance

3. High efficiency. For mist with a diameter of 3-5 μ m, the capture rate of the PP defoamer can reach over 97%.

4. Long term use. Using high-quality and environmentally friendly raw materials, with standardized specifications, uniform pore size, uniform structure, without burrs, firm weave, and long-lasting use.

5.Convenient installation, light weight, and convenient maintenance.

Working principle

1.When the gas rises at a constant speed through the mist eliminator pad, due to the inertia of the rising gas, the gas collides with the woven mesh and adheres to the surface of the filament.

2.The diffusion of gas on the surface of the filament and the gravitational settling of gas result in the formation of larger droplets along the filament to the junction of two filaments.

3.The wettability of the feed inlet fibers, the surface tension of the liquid, and the capillary action of the fibers make the droplets larger and larger.

4.When the droplet is too large, its own gravity exceeds the lift of the gas, the combined force of the liquid and surface tension, and the droplet will detach from the filament.
