Az120 Metal Corrugated Profile Steel Roof/Roofing Sheet

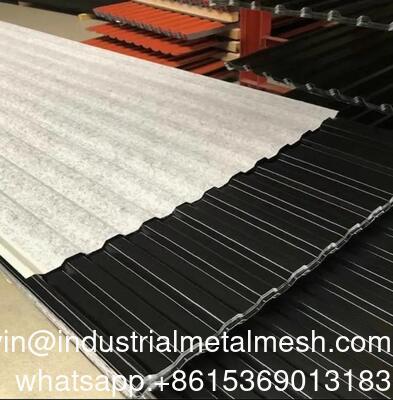

Großes Bild : Az120 Metal Corrugated Profile Steel Roof/Roofing Sheet

Produktdetails:

Herkunftsort:	China
Markenname:	qijie
Zertifizierung:	Corrugated Prepainted Roofing Sheet
Modellnummer:	Vorgefärbte Dachplatte

Zahlung und Versand AGB:

Min Bestellmenge:	10 Tonnen
Verpackung Informationen:	Palette
Lieferzeit:	15-18 Tage
Zahlungsbedingungen:	L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	10 Tonnen

Kontakt

Ausführliche Produkt-Beschreibung

Material:	Stahl	Anwendung:	Schimmel- und Druckmaschinen, Schiffsplatte, Kesselplatte, Behälterplatte, Flanschplatte
Technik:	kaltgewalzt	Besondere Verwendung:	Schneidwerkzeuge, Messwerkzeuge, Schneidmaschinen aus einfachem Stahl, hochfeste Stahlplatten, versc
Normale Größe:	665/800/840/900/1050	Dicke:	0,12–1,2 mm
Hervorheben:	corrugated steel roofing sheet , metal profile roof sheet , Az120 roofing sheet with warranty

Az120 Metal Corrugated Profile Steel Roof/Roofing Sheet

GALVANISED CORRUGATED STEEL SHEETRoofing Sheet is a plain carbon steel sheet coated in a galvanizing process that applies a barrier of zinc to insulate it from the elements. Most of the
corrugated roofing and siding products seen today and for many years past are made with a galvanized finish. It is most commonly used for commercial, agricultural, and industrial purposes, however, it is now also being recognized as an excellent form of residential roofing.

Thickness	0.12mm-2.0mm
Width	660~1100mm
Length	1000-11800mm
Grade	DX51D+Z DX52D+Z DX53D+Z DX54D+Z DX56D+Z DX57D+Z	CS A CS B CS C FS A FS B	SGCC SGCD	SGC340 SGC400 SGC440 SGC490 SGC510	S220GD+Z S250GD+Z S280GD+Z S320GD+Z S350GD+Z S550GD+Z
Zn Coating	Z30-Z275
Color	According to RAL code
Coating Types	PE, SMP, JD, HDP, PVDF
Coating	Top Paint: 10~35 micron
	Back Paint: 5~12micron
Type of coating process	Front: Double Coated & Double Drying
	Back: Double Coated & Double Drying, Single Coated & Double Drying
Finish	High light, Glossy, Matte
Packing	Standard export package (Plastic film in the first layer, second layer is Kraft paper. Third layer is galvanized sheet+package strip+corner protected, one pallet about 3 tons)
Application	Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings
Advantages	1.Design according to customers 'requirements 2.Production under ISO9001-2008 Quality System 3.Easy to be installed as light weight 4.Our products are recyclable materials 5.The less construction period, the more using time.6.paint your logo for free

FEATURES OF CORRUGATED SHEETS:

Corrugated sheets are wider in length, so there are fewer joints. This results in less wastage, less overlap, less chance of leaks, and lower labour costs
* Strength: Sheets are stronger and also prevent fine cracks around bolts

* Aesthetics: Smooth surface with even gloss

* IS 277 Compliant: Each sheet undergoes rigorous quality testing to ensure superior quality

* Weatherproof: Sheets withstand all kinds of weather, be it heavy rain, salty sea breeze, humid coastal areas, cold snow, or hot weather.

* Excellent Corrosion Protection: Sheets are made with anti-corrosion technology to prevent corrosion and extend the life of your roof.

* Wide Range of Products: Available in multiple thicknesses (0.09mm to 0.80mm) and multiple width options (720mm to 1220mm) as required. The wide width range allows for minimum overlap, which reduces leak points and saves on fixing fittings, allowing for better planning.

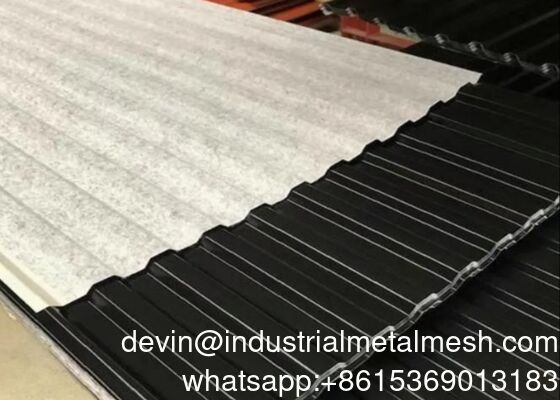

Az120 Metal Corrugated Profile Steel Roof/Roofing Sheet 0

MANUFACTURING PROCESS:

1. HR Coil
2. HR Slitter
3. Pickling Line
4. Cold Rolling Mill
5. CR Trimming line
6. Continuous Galvanising line
7. Cut to Cut-to-length machine & Galvalume Coils
8. Corrugation Machine
9. Corrugated Sheets

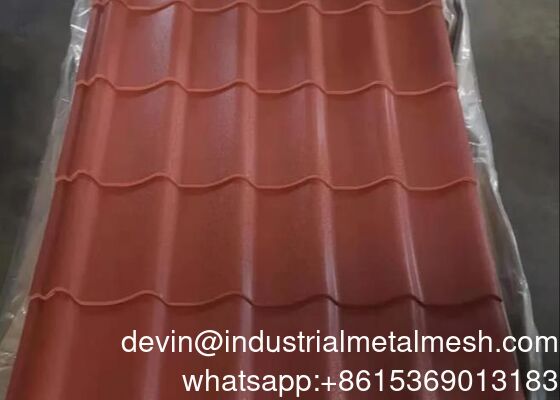

Az120 Metal Corrugated Profile Steel Roof/Roofing Sheet 1

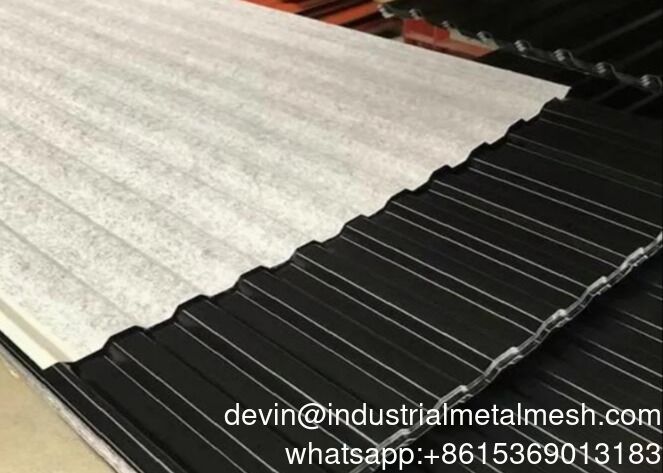

Az120 Metal Corrugated Profile Steel Roof/Roofing Sheet 2

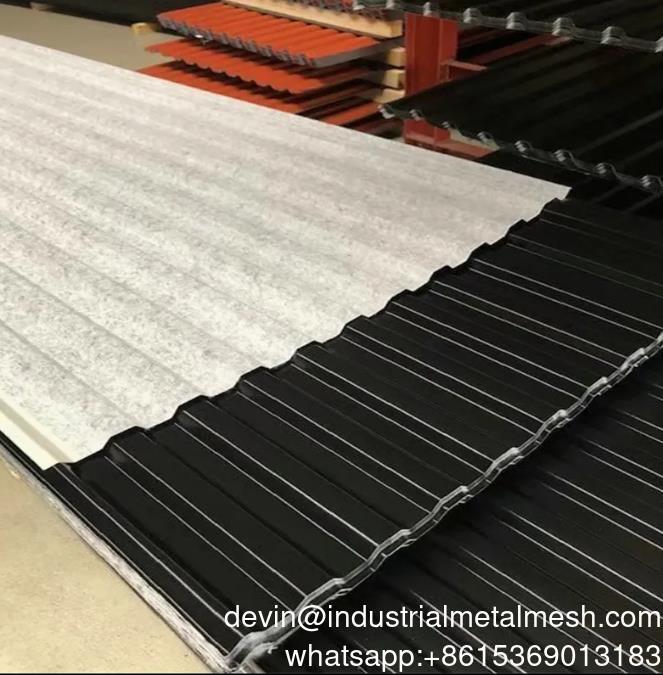

Az120 Metal Corrugated Profile Steel Roof/Roofing Sheet 3

Az120 Metal Corrugated Profile Steel Roof/Roofing Sheet 4
