CE Standard Customizable Galvanized 60%-85% Open Area Drain Steel Grating

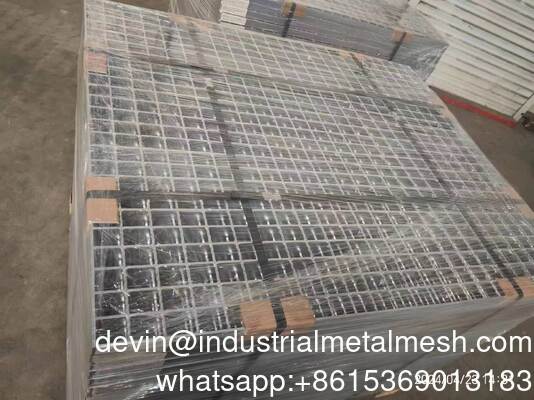

Großes Bild : CE Standard Customizable Galvanized 60%-85% Open Area Drain Steel Grating

Produktdetails:

Herkunftsort:	China
Markenname:	Dimpled Hole Metal Sheets
Modellnummer:	Gespaltene, durchlöcherte Metallbleche

Zahlung und Versand AGB:

Min Bestellmenge:	10 Stück
Verpackung Informationen:	Paletten
Lieferzeit:	15-18 Tage
Zahlungsbedingungen:	30% TT im Voraus, Guthaben vor der Verladung
Versorgungsmaterial-Fähigkeit:	1000 Stück

Kontakt

Ausführliche Produkt-Beschreibung

Chemische Zusammensetzung:	F.E., C, Si, Mangan, S, P	Legierung oder nicht:	Nicht legiert
Fähigkeit zur Projektlösung:	Grafikdesign, 3D-Modelldesign, Gesamtlösung für Projekte	Anwendung:	Villa
Oberflächenbehandlung:	Feuerverzinkung, malend oder unbehandelt	Gitterlänge:	1000 mm
Gitterbreite:	800mm	Tragen von Stärke der Stangenbreite x:	25x3mm
Tragen von Stangenform:	Deutlich gezacktes i-Stange Schriftart-Stahlgitter	Querlatteform:	rund, verdreht, Stangenform
Maschenweite:	30x100mm	E-Mail:	devin@industrialmetalmesh.com
WhatsApp:	+8615369013183
Hervorheben:	CE standard galvanized steel grating , customizable drain steel grating , 60%-85% open area steel grating

CE Standard Customizable Galvanized 60%-85% Open Area Drain Steel Grating

Steel bar grating, known for its high strength and robust structure, is manufactured from carbon steel, aluminum, or stainless steel. Depending on the production method, steel grating can be categorized into four types: welded bar grating, press-locked grating, swage-locked grating, and riveted grating. Based on surface design, it is available in both smooth and serrated options. With a wide range of styles and sizes, steel grating serves versatile applications in everyday life, including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment, security screens, and heavy-duty constructions.

Product Parameters (Technical Specifications)
Parameter	Specification Options	Standard / Notes
Material	Mild Carbon Steel (Q235), Stainless Steel (304, 316), Aluminum	Most common: Carbon steel with galvanizing
Bearing Bar	Flat, Serrated, I-Bar	Serrated for maximum slip resistance
Bearing Bar Thickness	3mm, 4mm, 5mm, 6mm	Custom thicknesses available
Bearing Bar Spacing	30mm, 34.3mm (1-3/16"), 40mm, 41mm	30mm spacing is standard for walkways
Cross Bar Spacing	50mm, 100mm	100mm is most common
Surface Treatment	Hot-Dip Galvanized, Painted, Powder Coated, Black (Ungalvanized)	HDG to ASTM A123 is standard for carbon steel
Panel Standard Size	1000mm x 6000mm, 1000mm x 5000mm, Custom Sizes	Can be cut to your exact dimensions
Load Classes	Standard (15A/15B), Heavy-Duty, Special Duty	According to ANSI/NAAMM MBG 531 or EN ISO 14122
Note: All specifications can be customized. Consult our engineering team for project-specific requirements.

metal walking grates introduction-- galvanized road drainage grates

Bearing bar type	Flat bar	I bar	Serrated bar
Cross bar type	Twisted bar	Round bar	flat bar
Production process	welded	Pressure locked
Surface treatment	Self-colour	Galvanized	painted
application	Platform	walkway&floor	Trench cover	Steel stair treads
	Suspended ceiling	Barrier fence

bearing bar types:
surface treatment: mill finish,hot dip galvanized,painted

Material	Carbon Steel, Stainless Steel, Aluminum
Surface treatment	Hot dipped galvanized, Spray painting, Polished and powder coated
Bearing bar type	Plain(Flat) bar, Serrated bar, I-bar, etc.
Common specification
Bearing bar pitch (mm)	Cross bar pitch (mm)	Bearing bar size (WSG_Height×Thickness_Bearing bar pitch_Cross bar pitch)
30	100	WSG_203/253/323/403/205/325/405/455/505/555_30_100
	50	WSG_203/253/323/403/205/325/405/455/505/555_30_50
40	100	WSG_203/253/323/403/205/325/405/455/505/555_40_100
	50	WSG_203/253/323/403/205/325/405/455/505/555_40_50
60	50	WSG_203/253/323/403/205/325/405/455/505/555_60_50
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately.

Advantages:
high strength, anti-slip, ventilation and light transmission properties.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

CE Standard Customizable Galvanized 60%-85% Open Area Drain Steel Grating 0

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
