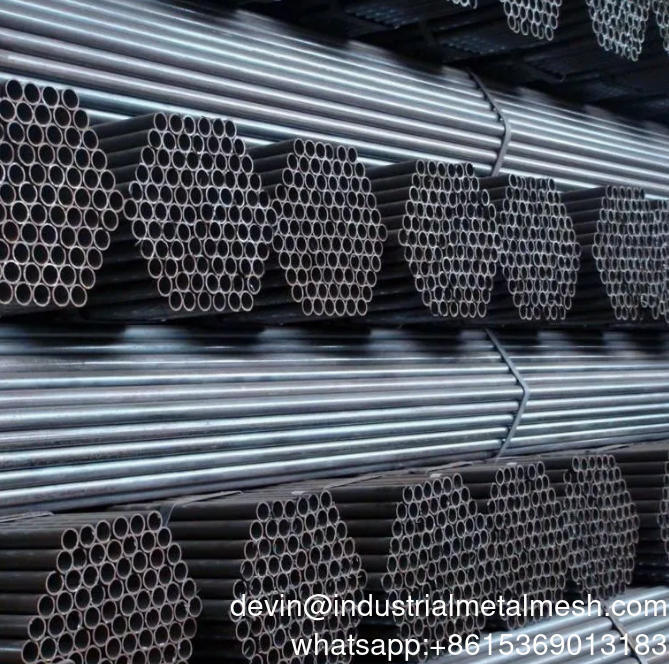

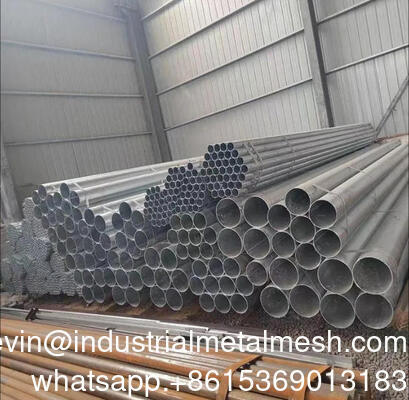

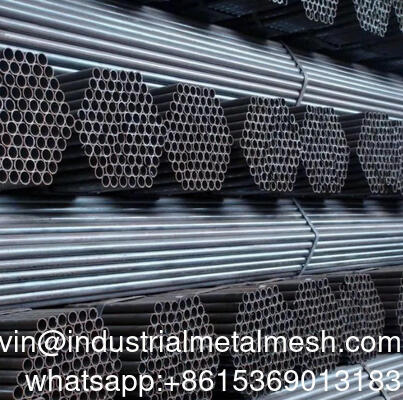

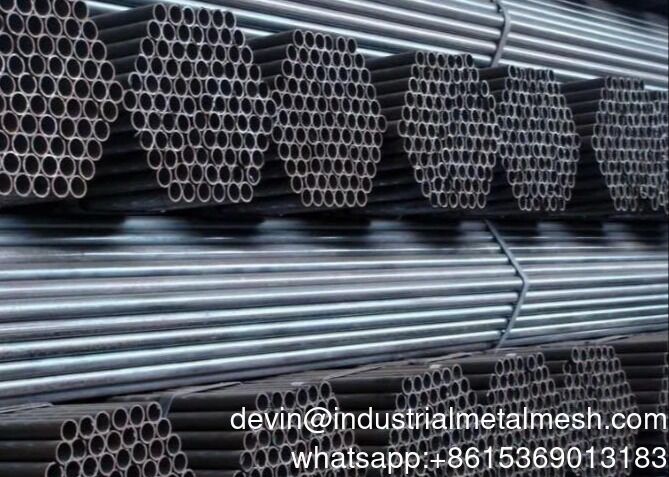

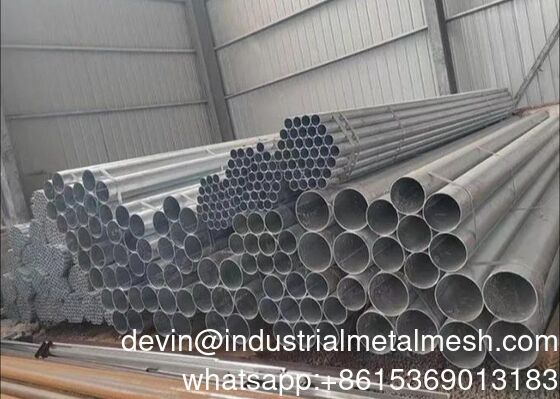

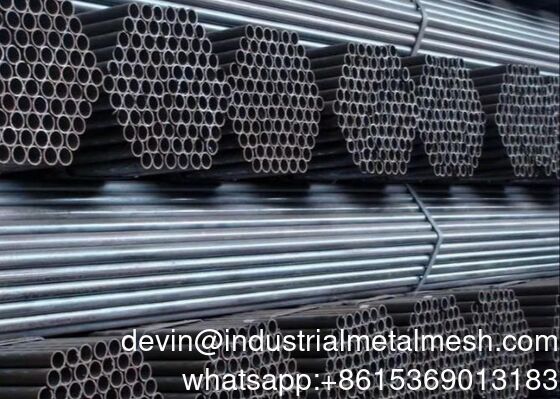

Hot Rolled Pressure Resistance 5mm-36.5mm Thickness Steel Pipe Tube

Großes Bild : Hot Rolled Pressure Resistance 5mm-36.5mm Thickness Steel Pipe Tube

Produktdetails:

Herkunftsort:	China
Markenname:	qijie
Zertifizierung:	steel pipe
Modellnummer:	Stahlrohr

Zahlung und Versand AGB:

Min Bestellmenge:	10 Tonnen
Verpackung Informationen:	Schüttgut
Lieferzeit:	15-18 Tage
Zahlungsbedingungen:	L/C, D/P, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	100tons

Kontakt

Ausführliche Produkt-Beschreibung

Material:

Stahl

Oberflächenbehandlung:

feuerverzinkt

Standard:

GB/T3091 – 2001, BS1387 – 1985, DIN EN10025, EN10219, JIS G3444:2004, ASTM A53

Stahlsorte:

GB/T3091 – 2001:Q195, Q235 BS1387 – 1985, DIN EN10025 EN10219: S235JR JIS G3444:2004: STK400 ASTM A5

Hervorheben:

hot rolled steel pipe

pressure resistant steel tube

thick wall steel pipe

Hot Rolled Pressure Resistance 5mm-36.5mm Thickness Steel Pipe Tube

Precision Dimensions for Easy Integration.

According to different purposes, there are thick-walled seamless steel pipes and thin-walled seamless steel pipes. Seamless steel pipes are mainly used as petroleum geological drilling pipes, cracking pipes for petrochemical industry, boiler pipes, bearing pipes, and high-precision structural steel pipes for automobiles, tractors, and aviation.

We have large stock of seamless pipe and delivery only need 7 days, The stock main material are SAE1020/SAE1018/20#I SAE1045/S45C/45# and 16Mn/SAE1518/st52.

Exceptional Structural Reliability.

Manufactured without welding seams our pipes eliminate the common weak points of welded alternatives offering superior pressure resistance and leak-proof performance.

We also provide customized pipe processing services such as Pipe cutting, pipe bending and steel pipe fabrication according to your drawing

1. Size:	1) OD: 16~600mm 2) Wall Thickness: 0.5~25mm 3) SCH20,SCH40,STD,XS,SCH80,SCH160,XXS
2. Steel material:	Q195 Q215 Q235
3. Standard:	ASTM A53, BS1387-1985
4. Zinc Coating:	30~275gsm
5. Usage:	1)low pressure liquid, water, gas, oil, line pipe 2)construction 3)fence, door pipe
6. Ends:	1) Plain 2) Beveled 3) Thread with Coupling or cap 4) Chamfer 5) Groove 6) Screw
7. End protector:	1) Plastic pipe cap 2) Iron protector
8. Surface Treatment:	1) Bared 2) Black Painted (varnish coating) 3) Galvanized 4) Oiled 5) PE,3PE, FBE, corrosion resistant coating, Anti corrosion coating.
9. Technique:	1) Electronic Resistance Welded (ERW ) 2) Electronic Fusion Welded (EFW) 3) Double Submerged Arc Welded (DSAW)
10. Welded Line Type:	Longitudinal
11. Section Shape:	Round, Square, Rectangular.
12. Inspection:	With Hydraulic Testing, Eddy Current , Infrared Test
13. Delivery:	Container, Bulk Vessel.
14. Minimum Order Quality:	5MT

1.Black square&rectanhgular steel pipe:ERW steel tube
2.Pre-galvanized square&rectangular steel pipe: Pre-galvanized square/rectangular tube is made of hot dipped galvanized steel strip directly.
3.Hot dipped galvanizedsquare&rectangular steel pipe : Hot dipped galvanized square/rectangular tube owns thicker zinc coating than pre-galvanized square/rectangular tube. Black tubes will be dipped into zinc pool for galvanizing.
4.Electro galvanized square&rectangular steel pipe : The technology of electro galvanized square/rectangular tube is similar to hot dipped galvanized tube, but the thickness of zinc coating is less than hot dipped galvanized tube.
5.Painted square&rectangular steel pipe:Painted square/rectangular to remove the rust and clean the oil first and then paint the required color paint.
Standard:GB/T6728:2002,ASTMA500,JIS G3466,EN10210,EN10219
Steel Grade:
GB/T6728:2002 : Q195 , Q235 , Q345
ASTM A500:GR. A , GR. B, GR. C , GR. D
JIS G3466 : SS440,SS540
EN10210, EN10219: S235JR ,S275JR,S355JR, S355J2H

Square & rectangular steel tube : The size can be based on your requirement to custom.

Name	Size	Wall Thickness	Length
Name	mm	mm	m
Square tube	10x10-500x500	0.6-25.0	1-12m
Rectangular tube	20x10-200x400	0.7-13.0	1-12m

TECHNICAL PARAMETERS
Product Name	Galvanized Steel Round Pipe
Keywords	Steel Pipe
Standard	BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, ASTM A53 SCH40/80/STD, BS-EN10255-2004
Material	Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D
Thickness	Pre Galvanized:0.6-1.5mm.
Thickness	Hot Dipped Galvanized: 1.6- 25mm.
Length	5.80 Meters Or 6 Meters As Usual Or By Customer'S Requirements
Out Diameter	Pre Galvanized:1/2''-4''(21.3-114.3mm).
Out Diameter	Hot Dipped Galvanized:1/2''-10''(21.3Mm-273.1mm).
Zinc Coating	Pre Galvanized:5GSM-40GSM
Zinc Coating	Hot Dipped Galvanized 35GSM-200GSM
Technique	Electronic Resistance Welded (ERW)
Surface Finish	Pre-Galvanized, Hot Dipped Galvanized, Electro Galvanized, Black, Painted, Threaded, Engraved, Socket.
Application	Hot Dipped Galvanized Steel Pipe Is Widely Used In Construction, Structure, Accessorize,Construction, Machinery Parts,Fluid Transportation,The Stress Parts Of The AutomobileTractor Parts And So On.
Packing	1.Big OD:In Bulk
	2.Small OD:Packed By Steel Strips
	3.Woven Cloth With 7Slats
	4.According To The Requirements Of Customers

SIZE INTRODUCTION
Out Diameter	Wall Thickness	Length
Inch	Mm	M
1/2"	0.5-2.75	1-12M (Customized)
3/4"	0.5-2.75	1-12M (Customized)
1"	0.5-3.75	1-12M (Customized)
1-1/4"	0.5-5.0	1-12M (Customized)
1-1/2"	0.5-5.0+	1-12M (Customized)
2"	0.5-5.0+	1-12M (Customized)
2-1/2"	0.8-5.0+	1-12M (Customized)
3"	0.8-5.0+	1-12M (Customized)
4"	0.8-4.0	1-12M (Customized)
5"	1.1-4.75	1-12M (Customized)
6"	1.1-6.0+	1-12M (Customized)
8"	1.2-6.5+	1-12M (Customized)
10"	2.75-5.0+	1-12M (Customized)
