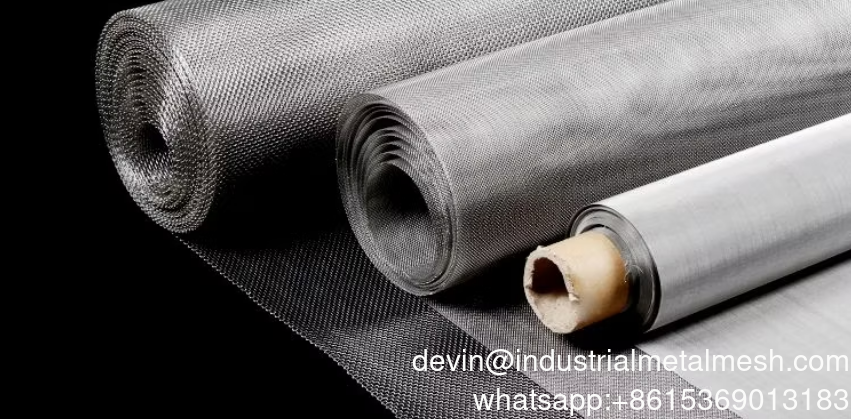

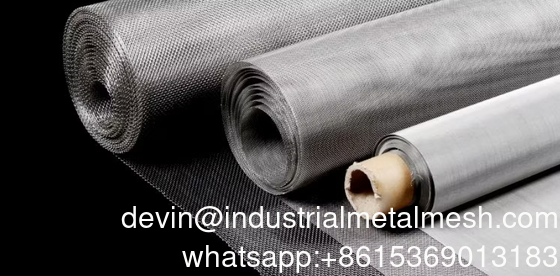

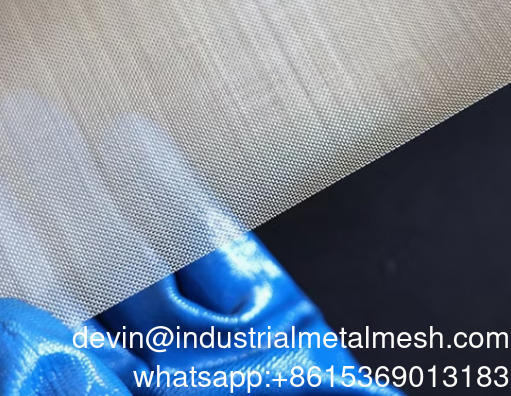

Certificate Guarantee AISI 321 Woven Wire Mesh Square Hole Stainless Steel Wire Mesh

Chemical composition of 316L stainless steel wire cloth(%)

Various standards of stainless steel 316L wire mesh

• Marine grade stainless steel.
• Good machinability.
• High strength and high toughness.
• Good thermal stability.
• Excellent corrosion resistance, especially in strong corrosive media such as chlorides.

• For various filtration and separation requirements in the chemical industry, petroleum, Mining, shipbuilding, mining, food, .
• Heat exchangers.
• Decoration mesh.
• Insect screen/mosquito screen.
• Aerospace.
• Waster water and ballast water filter.
• Seawater treatment equipment.
• Wire Mesh Basket Manufacturing.
• Screen printing.

1. How to order?

When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.

For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.

More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll

2. Deep processing services

The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.

3. Detail application example

325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.

4. Specifications mesh count of SUS 316L wire mesh
