Qualified Plain Weave Woven Stainless Steel Wire Mesh Screen on Sale

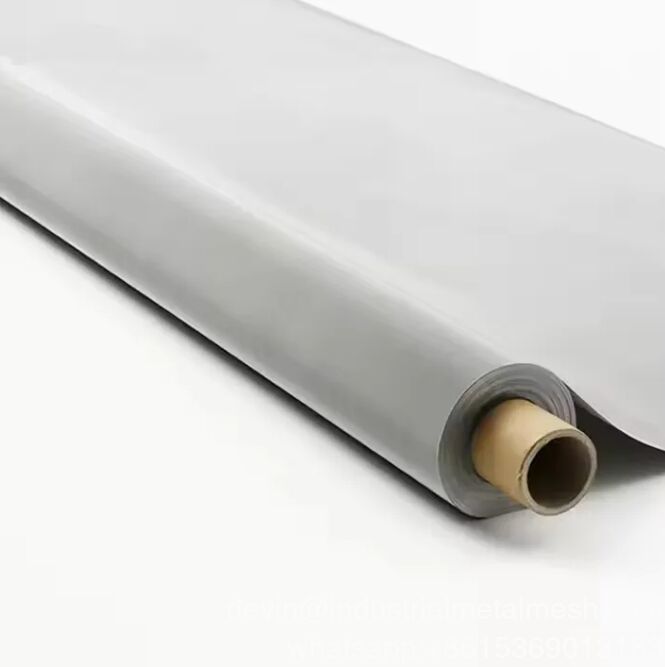

Großes Bild : Qualified Plain Weave Woven Stainless Steel Wire Mesh Screen on Sale

Produktdetails:

Herkunftsort:	China
Markenname:	QIJIE
Zertifizierung:	ISO9001
Modellnummer:	QJ-004

Zahlung und Versand AGB:

Min Bestellmenge:	50 Rollen
Preis:	discuss
Verpackung Informationen:	Als Anforderung
Lieferzeit:	15 - 20 Tage
Zahlungsbedingungen:	TT/LC
Versorgungsmaterial-Fähigkeit:	1000 Rolls pro Woche

Kontakt

Ausführliche Produkt-Beschreibung

Technik:	Gewebt	Material:	Edelstahldraht, 316,304
Webenstil:	Einfache/Twill-Webart	Produktname:	Das gesponnene Quadrat 4X4 bemehlen der 100 Mikrometer-Edelstahl-Maschendraht
Drahtdurchmesser:	Erfordernis	Breite:	Normalerweise 1M
E-Mail:	devin@industrialmetalmesh.com	WhatsApp:	+8615369013183
Hervorheben:	plain weave stainless steel mesh , woven wire mesh screen , stainless steel wire screen

Qualified Plain Weave Woven Stainless Steel Wire Mesh Screen on Sale

Stainless steel mesh is wire mesh, which is produced using weaving technology specially adapted to the material. The wires used can have a diameter of 12 µm to 7 mm, depending on the stainless steel alloy.

In industry, stainless steel mesh is mainly used in filtration and separation technology.

The stainless steel alloys used are crucial in determining the fields of use in terms of corrosion, temperatures and strengths. The currently available materials made of stainless steel and its alloys can be used in extremely corrosive environments as well as in applications exposed to very high temperatures.

Woven type available

1. [ Plain Weave ]: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves.
In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern.
Each weft thread crosses the warp threads by going over one, then under the next, and so on.
The next weft thread goes under the warp threads that its neighbor went over, and vice verse.

2. [ Twill Weave ]: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left,
forming a distinct diagonal line. This diagonal line is also known as a wale.
A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.

3. [ Plain Dutch Weave ]: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.

4. [ Twill Dutch Weave ]: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.

5. [ Reversed Dutch Weave ]: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

Stainless Steel Wire Mesh

Mesh number: 1 mesh--3500 mesh.

Material: SUS302, 201, 304, 304L, 316, 316L, 310, 310S, etc.

Use:

1. Used for screening and filtration under acid and alkali environmental conditions. In the petroleum industry, it is used as a mud net, in the chemical and chemical fiber industry, as a screen filter, and in electroplating...
2 Used in mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries...

Features:
1. Uniform mesh, good production reproducibility;
2. Good resistance to acid, alkali and corrosion;
3. High strength,tensile strength, toughness and wear resistance, long service life;
4. Uniform structure, non - crimp, easy to use, uniform thickness, antistatic;
5. High temperature oxidation resistance, 304 stainless steel screen nominal tolerance temperature of 800 degrees Celsius, 310S stainless steel screen name it can withstand temperatures up to 1150 degrees Celsius

Stainless steel Wire Mesh Specification

Table: Specification of Plain Weave Mesh
Model	Mesh Count	Wire Diameter		Mesh Opening		Open Area
-	(Warp × Weft)	Inch	mm	Inch	mm	%
HJ-0185	1x1	0.0799	2.030	0.9200	23.37	85
HJ-0276	2x2	0.0629	1.600	0.4370	11.1	76
HJ-0370	3x3	0.0539	1.370	0.2791	7.09	70
HJ-0456	4x4	0.0629	1.600	0.1870	4.75	56
HJ-0563	5x5	0.0409	1.040	0.1590	4.04	63
HJ-0662	6x6	0.0350	0.890	0.1318	3.35	62
HJ-0860	8x8	0.0279	0.710	0.0968	2.46	60
HJ-1056	10x10	0.0251	0.640	0.0751	1.91	56
HJ-1258	12x12	0.0200	0.508	0.0629	1.60	58
HJ-1446	14x14	0.0229	0.584	0.0480	1.22	46
HJ-1651	16x16	0.0179	0.457	0.0444	1.13	51
HJ-1848	18x18	0.0170	0.432	0.0385	0.98	48
HJ-2046	20x20	0.0159	0.406	0.0338	0.86	46
HJ-2444	24x24	0.0140	0.356	0.0275	0.70	44
HJ-3053	30x30	0.0090	0.229	0.0244	0.62	53
HJ-4036	40x40	0.0100	0.254	0.0149	0.38	36
HJ-5037	50x50	0.0079	0.203	0.0122	0.31	37
HJ-6034	60x60	0.0070	0.178	0.0098	0.25	34
HJ-8032	80x80	0.0055	0.140	0.0070	0.18	32
HJ-10037	100x100	0.0039	0.100	0.0060	0.154	37
HJ-12033	120x120	0.0035	0.090	0.0047	0.121	33
HJ-15042	150x150	0.0024	0.060	0.0042	0.109	42
HJ-16546	165x165	0.0019	0.050	0.0040	0.104	46
HJ-18042	180x180	0.0019	0.050	0.0036	0.0911	42
HJ-20034	200x200	0.0021	0.053	0.0029	0.0740	34
HJ-25037	250x250	0.0015	0.040	0.0024	0.0616	37
HJ-30033	300x300	0.0014	0.036	0.0019	0.0487	33
HJ-32531	325x325	0.0013	0.035	0.0017	0.0432	31
HJ-35034	350x350	0.0011	0.030	0.00167	0.0426	34
HJ-40028	400x400	0.0011	0.030	0.00131	0.0335	28
HJ-50026	500x500	0.00098	0.025	0.00101	0.0258	26
HJ-63525	635x635	0.00078	0.020	0.00078	0.0200	25
*We have more types of mesh than what is shown on the chart. Please feel free to contact us if you are looking for a certain opening size.

Chemical composition of 316L stainless steel wire cloth(%)

C ≤	Si ≤	Mn ≤	P ≤	S ≤	Cr	Ni	Mo
0.03	1.00	2.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0

Various standards of stainless steel 316L wire mesh

AISI	UNS	DIN	JIS	GB/T
316L	S31603	1.4404	SUS 316L	022Cr17Ni12Mo2

Key properties of ss316 wire mesh

Material	SUS 316L stainless steel wire
Color	Silver
Weave type	Plain dutch weave, Twill dutch weave and crimped
Mesh count	2 mesh – 500x3500mesh
Aperture	0.001mm – 25mm
Roll size	0.914mx30m, 1mx30m, 1.2mx30m, 2mx30m, etc
MOQ	1 square meter
Free Sample	A4 size of stock size
Package	Inside a paper tube, wrapped with moisture-proof paper, and then put into a box.

316L stainless steel mesh roll characteristics

Marine grade stainless steel.
Good machinability.
High strength and high toughness.
Good thermal stability.
Excellent corrosion resistance, especially in strong corrosive media such as chlorides.

316L stainless steel wire mesh application

For various filtration and separation requirements in the chemical industry, petroleum, Mining, shipbuilding, mining, food, .
Heat exchangers.
Decoration mesh.
Insect screen/mosquito screen.
Aerospace.
Waster water and ballast water filter.
Seawater treatment equipment.
Wire Mesh Basket Manufacturing.
Screen printing.

Other things you need to know about 316 stainless steel mesh

1. How to order?

When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.

For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.

More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll

2. Deep processing services

The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.

3. Detail application example

325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.

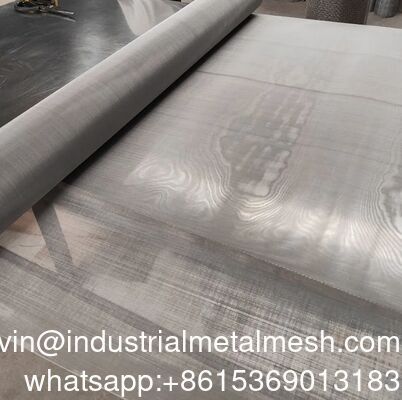

Qualified Plain Weave Woven Stainless Steel Wire Mesh Screen on Sale 1

Qualified Plain Weave Woven Stainless Steel Wire Mesh Screen on Sale 2

Qualified Plain Weave Woven Stainless Steel Wire Mesh Screen on Sale 3

Qualified Plain Weave Woven Stainless Steel Wire Mesh Screen on Sale 4
