3D Curved Double Wire Mesh Fence with V Beams for Factory Perimeter

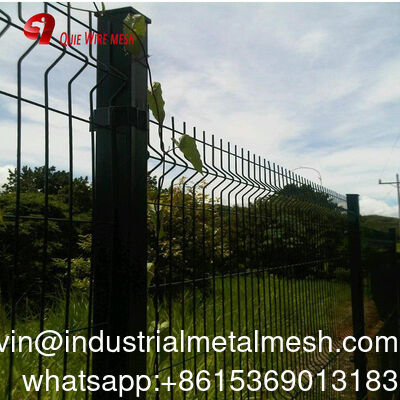

Großes Bild : 3D Curved Double Wire Mesh Fence with V Beams for Factory Perimeter

Produktdetails:

Herkunftsort:	China
Markenname:	XMESH
Zertifizierung:	ISO9001:2008, SGS, CE
Modellnummer:	46WMP

Zahlung und Versand AGB:

Min Bestellmenge:	100 Stk
Preis:	USD6.90-USD45.71
Verpackung Informationen:	Plastikfilm und hölzerne Palette.
Lieferzeit:	10-25 Tage
Zahlungsbedingungen:	30% TT im Voraus, Guthaben vor der Verladung
Versorgungsmaterial-Fähigkeit:	1000 PC/pro Tag

Kontakt

Ausführliche Produkt-Beschreibung

Material:	Kohlenstoffstahldraht, galvanisierter Draht	Mesh-Öffnung:	1" x1“, 1-1/2 " x1-1/2“, 2" x2“, 2" x1 " etc.
Drahtdurchmesser:	0.4mm - 6.0mm	Panelgröße:	1.2x2.4M, 1.2x3.0M, 1.8x3.6M ect.
Oberflächenbehandlung:	PVC-Beschichtung	Pfostenhöhe:	1.1M-3.0M
E-Mail:	devin@industrialmetalmesh.com	WhatsAPP:	+8615369013183
Hervorheben:	3D curved wire mesh fence , double wire mesh fence with V beams , factory perimeter metal fence

3D Curved Double Wire Mesh Fence with V Beams for Factory Perimeter

Welded Mesh Fencing is an economical and durable fencing type that suits a wide variety of applications.

The fence panels are typically constructed with rolled top and bottom profiles, which adds strength and durability to the fence panels, without adding additional weight. The design means the panels remain light weight and cost effective, which make weld mesh panels ideal for multiple applications.

Most commonly welded mesh panels are used for boundary fencing and secured compounds due to the added strength of the welded mesh design and heavier wire diameters, making it difficult to cut or damage.

curved mesh fence

3D Curved Fence Panel Specifications
Line wire xcross wire	Hole Size	Panel Length	Panel Height	Bending No.	Common Color	Surface treatment
4x4mm 4.5x4mm 4.5x4.5mm 5x4mm 5x5mm 6x5mm 6x6mm	50x100mm 50x200mm 55x200mm 75x150mm 100x300mm	2m 2.2m 2.4m 2.5m 2.8m 3m	830mm	2	Green RAL6005 Grey RAL7016 Brown RAL8019 Black RAL9005 White RAL9010	1.Hot-dipped galvarized after black wire welded 2.PVC coated afteryalvanized wire welded 3.PE coated after glvanized wire welded
			1030mm	2
			1230mm	2
			1530mm	3
			1830mm	4
			2030mm	4
			2230mm	4
			2430mm	4

3D Fence Post specifications
Size	Thickness	Panel height	Base post	Normal post	Surface treatment
40x40mm 50x50mm 60x60mm 50x70mm 70x100mm	1.0mm 1.1mm 1.2mm 1.5mm 1.8mm 2mm 2.5mm	830mm	850mm	1200mm	1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated
		1030mm	1050mm	1400mm
		1230mm	1250mm	1600mm
		1530mm	1550mm	2000mm
		1830mm	/	2400mm
		2030mm	/	2500mm
		2230mm	/	2800mm
		2430mm	/	3000mm

Easy Assembly and Eco-Friendly: This fencing panel features a user-friendly design that can be easily assembled, making it a convenient choice for garden owners. Additionally, it is eco-friendly, ensuring a guilt-free installation process.

Waterproof and Galvanized for Protection: The product is coated with a waterproof layer and galvanized to provide superior protection against corrosion, guaranteeing a long lifespan and minimal maintenance.
Certified Quality and Installation Support: Our PVC-coated 3D V-bending welded wire mesh fence panel meets the ISO 9001:2008 certification standards and comes with a video installation service, ensuring a hassle-free installation process and a high-quality product.

Tips:
You can only tell us fence height and total length you need, we will give you a suitable suggestions.

3D curved PVC coated galvanized welded iron wire mesh fence panel
material	steel iron wire,galvanized wire
surface treatment	PVC coated ,powder coated
color	blue,green,black,white,yellow,grey,etc.
wire diameter	4.5mm,5mm,6mm
hole size	50x200mm,75x200mm
fence height	1.5m,1.6m,1.8m,2m,2.1m
fence length	2m,2.5m
post	peach type post,square type post

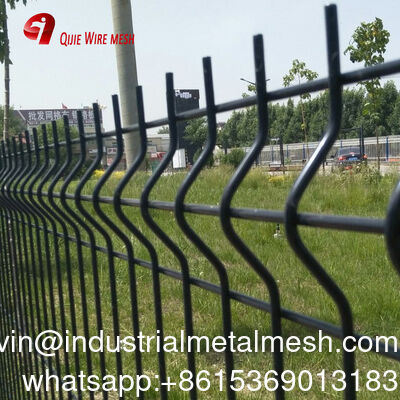

3D Curved Double Wire Mesh Fence with V Beams for Factory Perimeter 1
