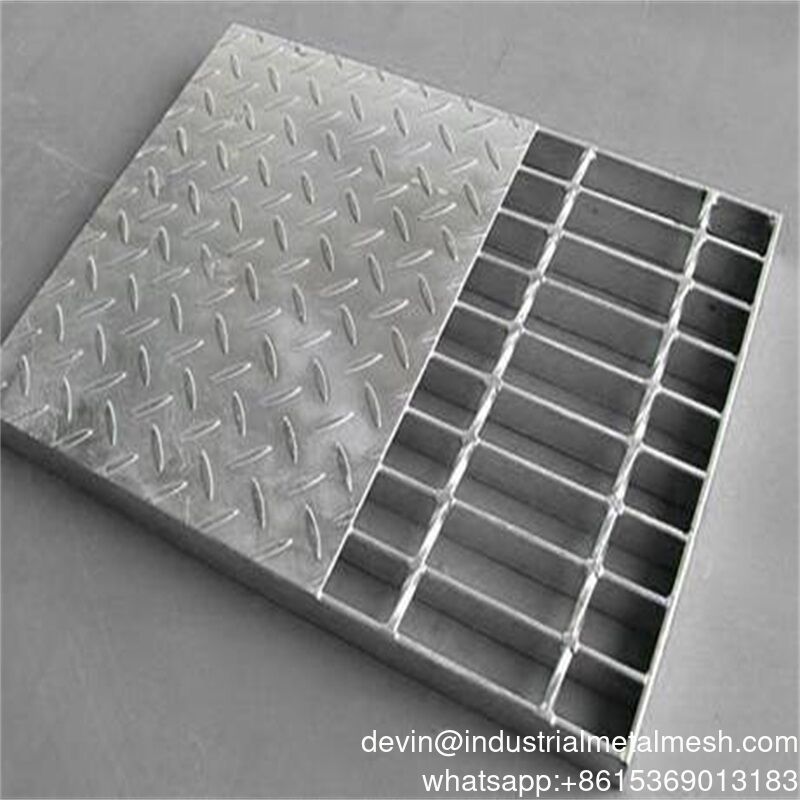

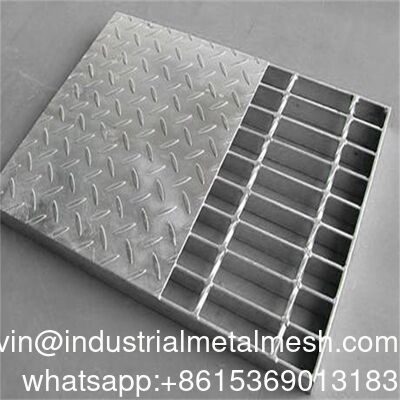

Durable Steel Sheet Grating with Variable Bearing Bar Pitch Options

Großes Bild : Durable Steel Sheet Grating with Variable Bearing Bar Pitch Options

Produktdetails:

Herkunftsort:	China
Markenname:	Dimpled Hole Metal Sheets
Modellnummer:	Gespaltene, durchlöcherte Metallbleche

Zahlung und Versand AGB:

Min Bestellmenge:	10 Stück
Verpackung Informationen:	Paletten
Lieferzeit:	15-18 Tage
Zahlungsbedingungen:	30% TT im Voraus, Guthaben vor der Verladung
Versorgungsmaterial-Fähigkeit:	1000 Stück

Kontakt

Ausführliche Produkt-Beschreibung

Chemische Zusammensetzung:	F.E., C, Si, Mangan, S, P	Legierung oder nicht:	Nicht legiert
Fähigkeit zur Projektlösung:	Grafikdesign, 3D-Modelldesign, Gesamtlösung für Projekte	Anwendung:	Villa
Oberflächenbehandlung:	Feuerverzinkung, malend oder unbehandelt	Gitterlänge:	1000 mm
Gitterbreite:	800mm	Tragen von Stärke der Stangenbreite x:	25x3mm
Tragen von Stangenform:	Deutlich gezacktes i-Stange Schriftart-Stahlgitter	Querlatteform:	rund, verdreht, Stangenform
Maschenweite:	30x100mm	E-Mail:	devin@industrialmetalmesh.com
WhatsAPP:	+8615369013183
Hervorheben:	Durable steel sheet grating , Galvanized steel grating with warranty , Steel grating variable bearing pitch

Durable Steel Sheet Grating with Variable Bearing Bar Pitch Options

Galvanized Steel Grating

Steel grating, also known as steel grid or bar grating, is a versatile and robust flooring solution designed for industrial, commercial, and architectural applications. Made from high-quality carbon or stainless steel, our steel grating features a lightweight yet durable design that ensures excellent load-bearing capacity and long-lasting performance.

Key features include a slip-resistant surface, customizable sizes, and various spacing options to suit different needs. The open design allows for optimal drainage and air circulation, making it ideal for demanding environments such as factories, walkways, and drainage covers.

Whether you require heavy-duty steel grating for energy sectors or lightweight options for pedestrian areas, our products meet safety standards while facilitating easy installation and maintenance. Enhance your project with our top-quality steel grating to achieve maximum efficiency and safety.

Keywords: steel grating, steel grid, bar grating, industrial flooring, slip-resistant, customizable, drainage, load-bearing capacity.

Product Features

Durability: Constructed from high-quality carbon or stainless steel, ensuring long-lasting performance in demanding environments.

Load-Bearing Capacity: Engineered to support heavy loads, making it ideal for industrial applications such as factories and warehouses.

Slip-Resistant Surface: Features a textured surface that enhances safety by reducing the risk of slips and falls.

Customizable Sizes: Available in various sizes and spacing options to meet specific project requirements and applications.

Optimal Drainage: Open design allows for effective water drainage and air circulation, reducing the risk of pooling and enhancing hygiene.

Specification

Learn more about the main components of metal bar grating
Material	Carbon Steel , Stainless Steel
surface treatment	Hot dip galvanizing,Painting,Spray coating,self colour
Product Process	Fully automatic pressure welding , manual welding
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
Bearing Bar	US standard: 25.4 x 4.8 mm 31.8 x 4.8 mm 38.1 x 4.8 mm 25.4 x 6.4 mm 31.8 x 6.4 mm 38.1 x 6.4 mm 25.4 x 3.2 mm 31.8 x 3.2 mm 38.1 x 3.2 mm etc
Bearing Bar Pitch	12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
Bearing Bar Pitch	US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch	38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, etc.
Steel Grade	ASTM A36, A1011, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
Grating Standard	China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 Japan: JIS Russia:GOST
Russian Standard
Common spacing of load-bearing flat steel:	11, 22, 33, 44
Common spacing for connecting flat steel:	11, 22, 33, 66
Surface treatment	Plating thickness ≥70 μm
Custom specifications available upon request

Features of Steel Grating - What is Steel Grating?
Steel Grating is welded bearing steel bars and cross twisted bars accoring to required pitch space between steel bars by steel grating welding machines.it is a grid building material.
All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistance and great anti-slip performance.
Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.

Surface Treatment Finishing of Steel Grating:
Generally Steel Grating is made with hot-dipped galvanized. Also zinc coating can be made according to the client's requirement.
Steel Grating can be called hot-dip galvanized steel grating,stainless steel gratings.Beautiful surface appearance and excellent performance in industry construction projects.

Materials of Steel Grating:
1) Carbon Steel Smooth Flat Bars,Carbon Steel Serrated Bars,I-Type Steel Bars.
2) Steel Twisted Square Cross Bars,Steel Round Cross Bars.
3)Stainless Steel 304 Grade Flat Bars, Stainless Steel 304 Grade Round Bars.

Packaging Details

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

steel grating Durable Steel Sheet Grating with Variable Bearing Bar Pitch Options 1

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
