Storm Drain Cover Steel Grating Mesh

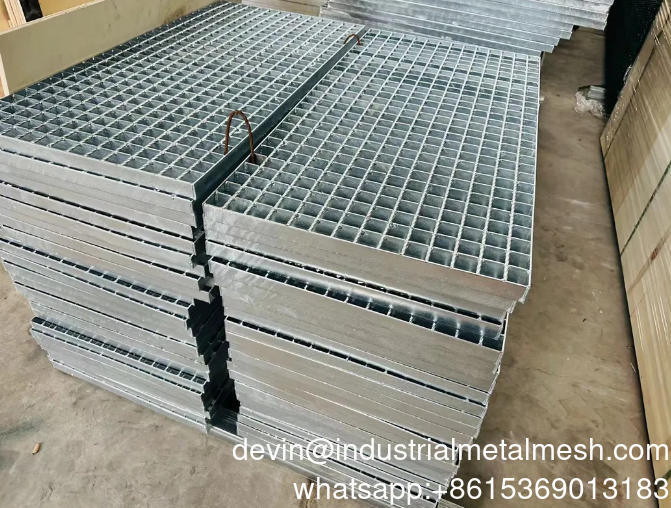

Großes Bild : Storm Drain Cover Steel Grating Mesh

Produktdetails:

Herkunftsort:	China
Markenname:	Dimpled Hole Metal Sheets
Modellnummer:	Gespaltene, durchlöcherte Metallbleche

Zahlung und Versand AGB:

Min Bestellmenge:	10 Stück
Verpackung Informationen:	Paletten
Lieferzeit:	15-18 Tage
Zahlungsbedingungen:	30% TT im Voraus, Guthaben vor der Verladung
Versorgungsmaterial-Fähigkeit:	1000 Stück

Kontakt

Ausführliche Produkt-Beschreibung

Chemische Zusammensetzung:	F.E., C, Si, Mangan, S, P	Legierung oder nicht:	Nicht legiert
Fähigkeit zur Projektlösung:	Grafikdesign, 3D-Modelldesign, Gesamtlösung für Projekte	Anwendung:	Villa
Oberflächenbehandlung:	Feuerverzinkung, malend oder unbehandelt	Gitterlänge:	1000 mm
Gitterbreite:	800mm	Tragen von Stärke der Stangenbreite x:	25x3mm
Tragen von Stangenform:	Deutlich gezacktes i-Stange Schriftart-Stahlgitter	Querlatteform:	rund, verdreht, Stangenform
Maschenweite:	30x100mm	E-Mail:	devin@industrialmetalmesh.com
WhatsAPP:	+8615369013183
Hervorheben:	galvanized steel grating mesh , storm drain cover grating , steel grating for drainage

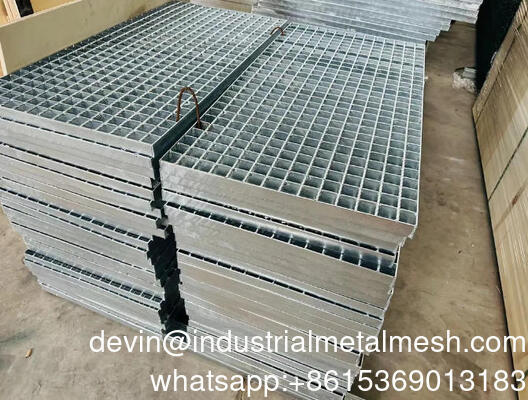

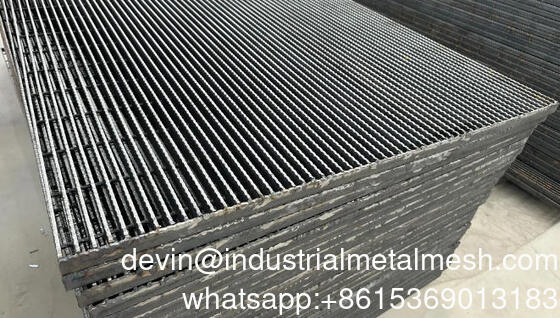

Storm Drain Cover Steel Grating Mesh

Galvanized Steel Grating

Steel bar grating with high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel. According to the manufacturing methods, it can be divided into four types: welded, press-locked, swage-locked, and riveted gratings. According to the surface shapes, it can be divided into smooth and serrated gratings. With various styles and sizes for choice, steel gratings are widely used in everyday life, such as stair treads, walkways, platforms, floors, various covers, wheeled equipment, security screens, heavy-duty constructions, and so on.

Core manufacturing process: "Substrate molding + Hot-dip galvanizing"

The production of galvanized steel grating involves two core steps:
Step 1: Manufacturing of steel grid plate base board
1. Resistance welding forming (main process): The load-bearing flat steel and the crossbar (twisted square steel) are welded together as a whole using a large resistance welding machine. This process is highly efficient and has high strength.
2. Locking press forming: It is connected through mechanical methods of punching and locking compression, without welding points, and the shape is smooth.
Step 2: Hot-dip Galvanizing Treatment (Key to Corrosion Prevention)
This is the core process that gives the steel grating board its lasting vitality. The procedure is meticulous:
· Acid pickling and rust removal: Immerse the welded steel grating plates in a hydrochloric acid tank to thoroughly remove the oxide scale and rust from the surface.
· Water washing for plating assistance: After cleaning with the acid solution, immerse it in a zinc ammonium chloride plating aid solution to prevent re-oxidation of the substrate and enhance the adhesion of the zinc layer.
· Drying: Dry the steel grating plates to avoid zinc spitting during the immersion zinc process.
· Hot-dip galvanizing: Immerse the dried steel grating plates in molten zinc at approximately 450°C, where complex iron-zinc metallurgical reactions occur, forming a dense zinc-iron alloy layer on the steel surface.
· Cooling: After removal, let it cool naturally or cool with water to form a shiny silver-gray final appearance.
· Quality inspection and adjustment: Check the thickness and uniformity of the coating, and make adjustments for a few zinc nodules.

Specification

Learn more about the main components of metal bar grating
Span:	Total span.
Width:	Panel width.
Bearing Bars:	Load carrying the main element.
Bearing Bars Spacing:	Measure from center-to-center of the bearing bars in 1/16″ increments. Standard spacing for industrial flooring is 19/16″(1-3/16″) in the center. Other popular spacings are 15/16″, 11/16″, 1/2″, and 7/16″ on center.
Bearing Bars Depth:	Ranges from 3/4″ to 7″ depending on anticipated loads.
Bearing Bars Thickness:	Ranges from 1/8″ to 1/2″ depending on anticipated loads.
Cross Bars:	Used to Secure the position of bearing bars.
Cross Bar Spacing:	Measured from center-to-center of cross bars in 1″ increments. Standard spacing is 4″ or 2″ on center.

Features of Steel Grating - What is Steel Grating?
Steel Grating is welded bearing steel bars and cross twisted bars accoring to required pitch space between steel bars by steel grating welding machines.it is a grid building material.
All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistance and great anti-slip performance.
Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.

Surface Treatment Finishing of Steel Grating:
Generally Steel Grating is made with hot-dipped galvanized. Also zinc coating can be made according to the client's requirement.
Steel Grating can be called hot-dip galvanized steel grating,stainless steel gratings.Beautiful surface appearance and excellent performance in industry construction projects.

Materials of Steel Grating:
1) Carbon Steel Smooth Flat Bars,Carbon Steel Serrated Bars,I-Type Steel Bars.
2) Steel Twisted Square Cross Bars,Steel Round Cross Bars.
3)Stainless Steel 304 Grade Flat Bars, Stainless Steel 304 Grade Round Bars.

Packaging Details

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

steel grating Storm Drain Cover Steel Grating Mesh 1

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.

Größe und Tag:
