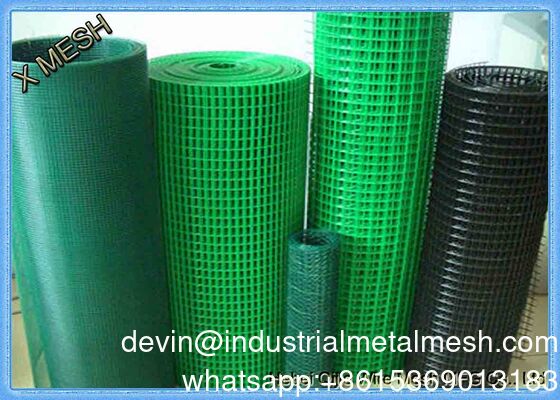

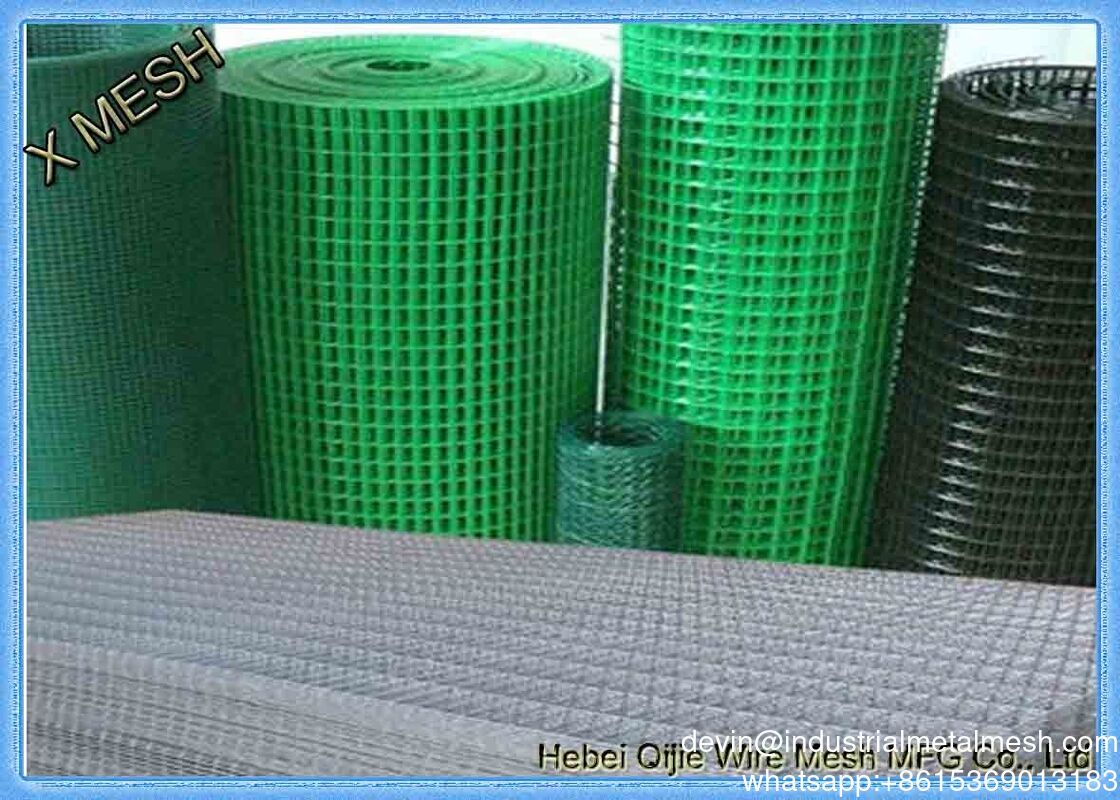

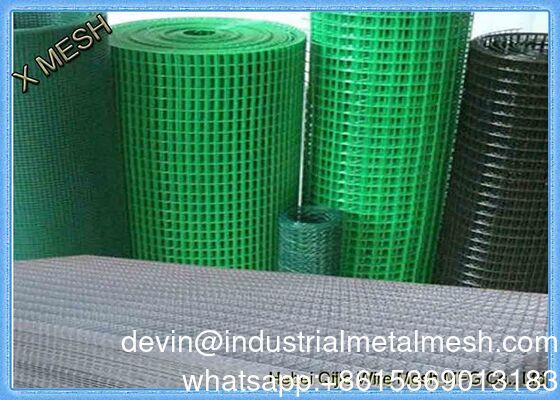

Plastic Coated Welded Wire Mesh Roll 2x2 Galvanized Welded Wire Mesh

Großes Bild : Plastic Coated Welded Wire Mesh Roll 2x2 Galvanized Welded Wire Mesh

Produktdetails:

Herkunftsort:	China
Markenname:	Qijie
Zertifizierung:	SGS
Modellnummer:	QJ-WM

Zahlung und Versand AGB:

Min Bestellmenge:	10 Rolls
Verpackung Informationen:	Paletten
Lieferzeit:	15 bis 18 Tage
Zahlungsbedingungen:	TT
Versorgungsmaterial-Fähigkeit:	1000 Stück

Kontakt

Ausführliche Produkt-Beschreibung

Lochform:	Quadrat, Rechteck	Gewicht pro Blatt:	Variiert je nach Drahtdurchmesser und Blechgröße
Öffnung:	50*75mm oder nach Ihren Wünschen, 1/4	Standardkonformität:	ASTM-, ISO- und BS-Standards
Dicke:	1,3 mm	Oberflächenbehandlung:	PVC-beschichtet
Rollengrößen:	24	Farbe:	Silber, Grün, Schwarz (für PVC-beschichtet)
Hervorheben:	galvanized welded wire mesh roll , plastic coated welded wire mesh , 2x2 welded wire mesh roll

Plastic Coated Welded Wire Mesh Roll 2x2 Galvanized Welded Wire Mesh

1. Welded wire mesh product description

Features:

strong welded points and bright luster .The mesh doesnt come loose even if cut in parts or being.

exerted force on parts .Compared with general iron wire ,the products are better in respects of anti-corrosive and anti-rust.

Usage:

They are widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage etc.

Application:

The welded wire mesh can be used as poultry case, egg basket, passageway rail, waterspout, lobby.

guardrail, rodentresistant net, mechanical shield, livestock and plants guardrail and fences, industry.

agriculture, construction, transportation and mining industry, etc.

Specification List of Welded Wire Mesh
Opening		Wire Diameter
In inch	In metric unit(mm)	Wire Diameter
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15
2" x 4"	50.8mm x 101.6mm	12,13,14,15
4" x 4"	101.6mm x 101.6mm	12,13,14,15
4" x 6"	101.6mm x 152.4mm	12,13,14,15
6" x 6"	152.4mm x 152.4mm	12,13,14,15
6" x 8"	152.4mm x 203.2mm	12,13,14
Technical Note: 1,Standard roll length: 30m; width: 0.5m to 2.4m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request.

pvc coated welded wire mesh advantages
1. The grid structure is concise, beautiful and practical;
2. It is easy to transport, and the installation is not restricted by terrain fluctuation;
3. Especially adaptable to mountains, slopes and multi-curved areas;
4. The price is medium to low, suitable for large areas.

Plastic Coated Welded Wire Mesh Roll 2x2 Galvanized Welded Wire Mesh 0

Tolerances on Mesh Dimensions
Mesh Dimensions(mm)	Tolerance(mm)
< 50	±2.0
≥50 to < 200	±3.0

Mesh Size and Wire Diameter
Mesh Size		Wire Diameter Before & After PVC Coat
mm	inch	BWG No.	Before Coated (mm)	After Coated (mm)
6.4	1/4	24-22	0.56-0.71	0.90-1.05
9.5	3/8	23-19	0.64-1.07	1.00-1.52
12.7	1/2	22-16	0.71-1.65	1.10-2.20
15.9	5/8	21-16	0.81-1.65	1.22-2.30
19.1	3/4	21-16	0.81-1.65	1.24-2.40
25.4 × 12.7	1 × 1/2	21-16	0.81-1.65	1.24-2.42
25.4	1	21-14	0.81-2.11	1.28-2.90
38.1	1 1/2	19-14	1.07-2.11	1.57-2.92
25.4 × 50.8	1 × 2	17-14	1.47-2.11	2.00-2.95
50.8	2	16-12	1.65-2.77	2.20-3.61

Welded Wire Mesh Roll Size
Mesh Inch	Width × Length
1/2	3 ft. × 50 ft.
1/2	4 ft. × 50 ft
1/2	5 ft. × 50 ft.
1/2	6 ft. × 50 ft.
3/4	3 ft. × 50 ft
3/4	4 ft. × 50 ft.
3/4	5 ft. × 50 ft
3/4	6 ft. × 50 ft.
1	3 ft. × 50 ft.
1	4 ft. × 50 ft.
1	5 ft. × 50 ft.
1	6 ft. × 50 ft.

Welded wire Mesh Panels Common Specification
Mesh		Wire Diameter
Expressed in Inches	Millimeters	Diameter	Millimeters
1" × 1"	25 mm × 25 mm	11 G - 14 G	2 mm - 3 mm
2" × 1"	50 mm × 25 mm	8 G - 14 G	2 mm - 4 mm
2" × 2"	50 mm × 50 mm	8 G - 14 G	2 mm - 4 mm
3" × 2"	75 mm × 50 mm	6 G - 14 G	2 mm - 5 mm
3" × 3"	75 mm × 75 mm	6 G - 14 G	2 mm - 5 mm
4" × 2"	100 mm × 50 mm	4 G - 14 G	2 mm - 6 mm
4" × 4"	100 mm × 100 mm	4 G - 14 G	2 mm - 6 mm
5" × 5"	125 mm × 125 mm	4 G - 14 G	2 mm - 6 mm
6" × 6"	150 mm × 150 mm	4 G - 14 G	2 mm - 6 mm
Note: Special specifications can be customized.

Plastic Coated Welded Wire Mesh Roll 2x2 Galvanized Welded Wire Mesh 1
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.
Applications:
Welded wire mesh is also called steel wire mesh, welded mesh, construction meh, square mesh, screen mesh.
Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. it plays an important structural role in the thermal insulation system.

Welded wire mesh fencing
Welded wire mesh backets
• Welded wire mesh architectural grilles
• Welded wire mesh grates
• Welded wire mesh racks
• Welded wire mesh aggregate screening
• Welded wire mesh test sieve cloth
• Welded wire mesh water screens
• Welded wire mesh guard screens
• Welded wire mesh detention and security
• Welded wire mesh machine guarding

PACKAGE & SHIPPING

Packaging steps:
Each piece put in on carton box, wood case, Plastics Packaging, pallet, etc.
Mode of shipping:
Shipping by air, sea or car.
By sea for batch goods;
Customs specifying freight forwarders or negotiable shipping methods.
