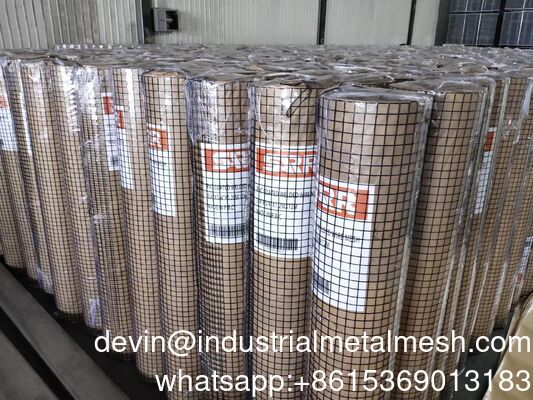

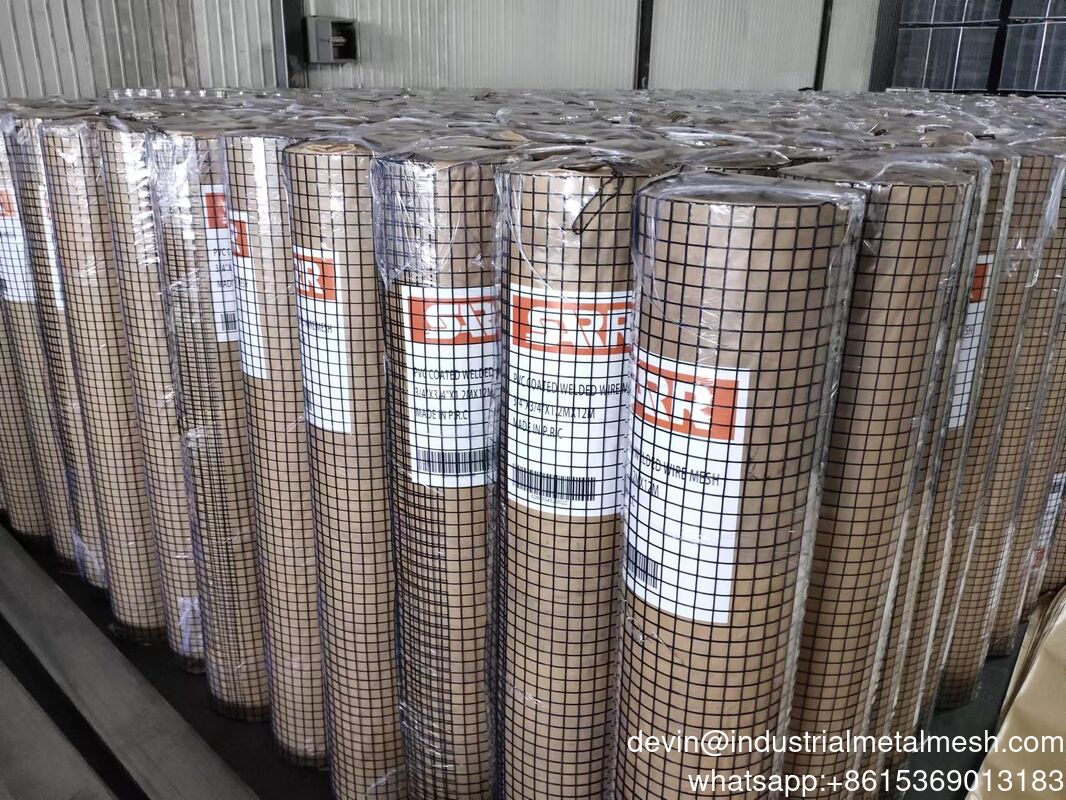

we offers a full range of welded wire mesh for various applications. Welded wire mesh is generally constructed in rolls or flat panels designed by customers. Custom wire openings available upon request.
Material
Electro galvanized before & after welded wire mesh
Hot-dipped galvanized before & after welded wire mesh
Annealed/galvanized wire+pvc coated
Stainless steel 304,316 wire
specification:
wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.

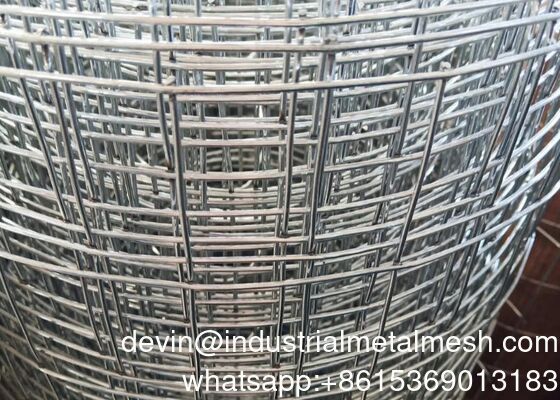

Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
| Mesh size (Inch) |
Wire diameter (mm ) |
Mesh size (mm) |
| 1/4'' x 1/4'' |
0.5-0.7 |
6.4mmx 6.4mm |
| 3/4" x 3/4" |
0.7-2.0 |
19mm x 19mm |
| 3/8'' x 3/8'' |
0.7 x 1.1 |
9.5mm x 9.5mm |
| 5/8'' x 5/8'' |
0.8 x 1.2 |
15.9 x 15.9mm |
| 1/2'' x 1/2'' |
0.45 x 1.6 |
12.7 x 12.7mm |
| 1'' x 1'' |
0.7 x 3 |
25.4 x 25.4mm |
| 1'' x 1/2'' |
0.7-2 |
25.4 x 12.7mm |
| 2'' x 1'' |
1.6 -4 |
50 x 25mm |
| 2'' x 2'' |
0.7-4 |
50 x 50mm |
| 3'' x 1/2'' |
2.0-4 |
75 x 12.7mm |
| 3'' x 2'' |
2.0-4 |
75 x 50 mm |
| 3'' x 3'' |
1.5-5 |
75 x 75 mm |
| 4'' x 2'' |
2.0-5 |
100 x 50mm |
| 4'' x 4'' |
1.0-5 |
100 x 100 mm |
| 5'' x 5'' |
2.0-5 |
125 x 125 mm |
| 6'' x 6'' |
2.0-5 |
150 x 150mm |
|
