Green PVC Coated Welded Wire Mesh 3'x100' Roll

Großes Bild : Green PVC Coated Welded Wire Mesh 3'x100' Roll

Produktdetails:

Herkunftsort:	China
Markenname:	QiJie
Zertifizierung:	ISO9001:2008, SGS, CE
Modellnummer:	01WWM

Zahlung und Versand AGB:

Min Bestellmenge:	50 Rollen
Preis:	USD9.90-USD45.90
Verpackung Informationen:	Kunststofffolie oder wasserfestes Papier
Lieferzeit:	10-25 Tage
Zahlungsbedingungen:	TT, LC,
Versorgungsmaterial-Fähigkeit:	1000 Rollen/Tag

Kontakt

Ausführliche Produkt-Beschreibung

Material:	Kohlenstoffstahldraht	Mesh-Öffnung:	12 × 12, 20 × 20, 25 × 25, 12 × 25 mm
Drahtdurchmesser:	0,4 mm - 1,5 mm	Rollenbreite:	0,4 m, 0,5 m, 0,6 m, 0,8 m, 1,0 m, 1,25 m, 1,5 m, 2,0 m
Rollenlänge:	15M, 30M, 50M usw	Oberflächenbehandlung:	Feuerverzinkt oder elektrisch verzinkt
Modellnummer:	xx-01001	Anwendung::	Zaunnetz
E-Mail:	devin@industrialmetalmesh.com	WhatsAPP:	+8615369013183
Hervorheben:	PVC coated welded wire mesh roll , 3x100 welded wire mesh fence , green PVC welded wire mesh

1/2 Inch 1 Inch 2 Inch Galvanzied Welded Wire Mesh

Product Description:

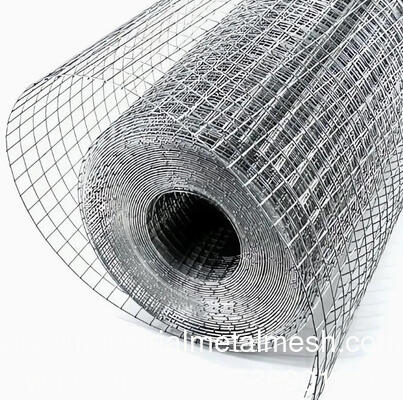

The welded wire mesh features a uniform and sturdy structure, presented in rolls with a metallic silver finish. It consists of interwoven metal wires, typically galvanized steel, forming a grid pattern with consistent square or rectangular openings. The mesh is neatly coiled into cylindrical rolls, making it easy to store, transport, and unroll for use. The wires are welded at each intersection, ensuring a stable and durable construction. The overall appearance is industrial yet precise, with the galvanized coating giving it a shiny, corrosion-resistant look. This design allows it to blend into various applications, from construction sites to agricultural settings, while maintaining a robust and reliable form.

specification:

wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT

Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.

Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.

Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.

Galvanized Fencing Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
2" x 3"	50mm x 75mm	2.0mm,2.5mm,1.65mm
3" x 3"	75mm x 75mm	2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"	50mm x 100mm	2.11mm,2.5mm
4" x 4"	100mm x 100mm	2.0mm,2.5mm
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Specification List of Welded Wire Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Welded Wire Plaster Wall Mesh

Applications:

Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.

Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
