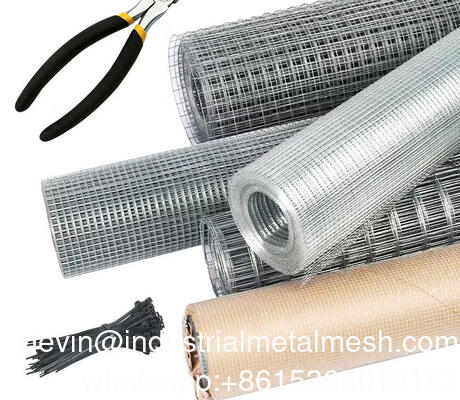

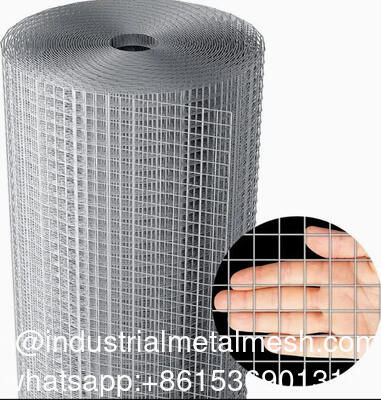

Electrical Galvanized Welded Wire Mesh 3/8X24bwg0.9X30m

Großes Bild : Electrical Galvanized Welded Wire Mesh 3/8X24bwg0.9X30m

Produktdetails:

Herkunftsort:	China
Markenname:	QiJie
Zertifizierung:	ISO9001:2008, SGS, CE
Modellnummer:	01WWM

Zahlung und Versand AGB:

Min Bestellmenge:	50 Rollen
Preis:	USD9.90-USD45.90
Verpackung Informationen:	Kunststofffolie oder wasserfestes Papier
Lieferzeit:	10-25 Tage
Zahlungsbedingungen:	TT, LC,
Versorgungsmaterial-Fähigkeit:	1000 Rollen/Tag

Kontakt

Ausführliche Produkt-Beschreibung

Material:	Kohlenstoffstahldraht	Mesh-Öffnung:	12 × 12, 20 × 20, 25 × 25, 12 × 25 mm
Drahtdurchmesser:	0,4 mm - 1,5 mm	Rollenbreite:	0,4 m, 0,5 m, 0,6 m, 0,8 m, 1,0 m, 1,25 m, 1,5 m, 2,0 m
Rollenlänge:	15M, 30M, 50M usw	Oberflächenbehandlung:	Feuerverzinkt oder elektrisch verzinkt
Modellnummer:	xx-01001	Anwendung::	Zaunnetz
E-Mail:	devin@industrialmetalmesh.com	WhatsAPP:	+8615369013183
Hervorheben:	galvanized welded wire mesh , 3/8 welded wire mesh , electrical welded wire mesh 30m

Electrical Galvanized Welded Wire Mesh 3/8X24bwg0.9X30m

Product Description:

Welded wire mesh is also called steel wire mesh, butt welded wire mesh, construction mesh, square mesh, screen mesh

Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. It plays an important structural role in the thermal insulation system. During construction, the hot-dip galvanized welded grid mesh is placed on the inner side of the outer wall outer mold to be poured , The external insulation board and the wall are alive at one time, and the insulation board is integrated with the wall after the mold is removed. .

specification:

wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT

Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.

Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.

Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.

Specification of Welded Wire Mesh
Opening		Wire Diameter	Width 0.4-2M Length 5-50m	electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire
In inch	In metric unit	Wire Diameter
1/4" x 1/4"	6.4 x 6.4mm	BWG24-22
3/8" x 3/8"	10.6x 10.6mm	BWG22-19
1/2" x 1/2"	12.7 x 12.7mm	BWG23-16
5/8" x 5/8"	16x 16mm	BWG21-18
3/4" x 3/4"	19.1 x 19.1mm	BWG21-16
1" x 1/2"	25.4x 12.7mm	BWG21-16
1-1/2" x 1-1/2"	38 x 38mm	BWG19-14
1" x 2"	25.4 x 50.8mm	BWG16-14
2" x 2"	50.8 x 50.8mm	BWG15-12
2" x 4"	50.8 x 101.6mm	BWG15-12
4" x 4"	101.6 x 101.6mm	BWG15-12
4" x 6"	101.6 x 152.4mm	BWG15-12
6" x 6"	152.4 x 152.4mm	BWG15-12
6" x 8"	152.4 x 203.2mm	BWG14-12
Note: Special specifications can be made according to customers requires.

Specification List of Welded Wire Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Welded Wire Plaster Wall Mesh

Applications:

Widely used in industry, agriculture, construction, transportation, mining, and other industries. Such as machine protective hoods, beasts and animal fences, window fences, channel fences, poultry cages, paper baskets, and decorations.

Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
